SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

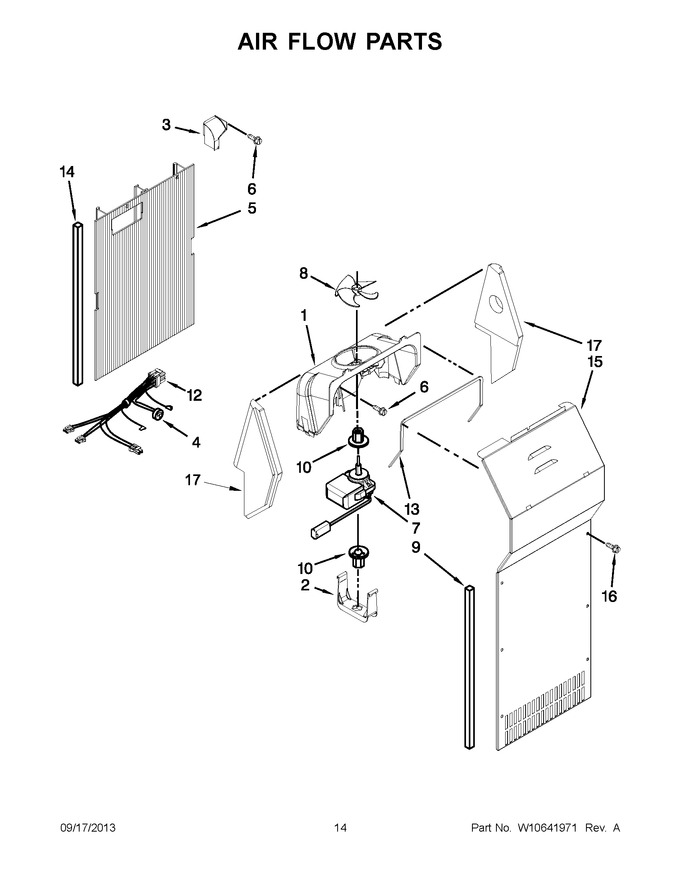

08 - Air Flow Parts


09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Scroll, Fan   (Replaces: 2182119)			Immediately	$ 323.27
2	2155590		Retainer, Fan Motor				$ 5.83
3	W10803597		Air Scoop   (Replaces: 2161229)				$ 82.02
4	W10129958		Bi-metal, Defrost		Appelez-nous	-
5	W11503180		Air Duct Freezer   (Replaces: 2203592)				$ 64.40
6	WP489478		Screw   (Replaces: 489478)				$ 7.75
7	WP2321275		Fan Motor   (Replaces: 2321275)				$ 303.64
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 82.80
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 7.77
12	W10242395		Harness, Fan Evaporator		Appelez-nous	-
13	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 82.80
14	4388500		Gasket, Air Duct   (Replaces: 2203875)				$ 90.39
15	W11429207		Cover, Evaporator   (Replaces: W10463012)				$ 58.00
16	4389654		Screw   (Replaces: 8281159)				$ 13.89
17	4388358		Support, Fan Scroll (right Hand)   (Replaces: 2203595)				$ 31.16
17	4388358		Support, Fan Scroll (left Hand)   (Replaces: 2203596)				$ 31.16

    View Diagram in Separate Window       Print Part List
