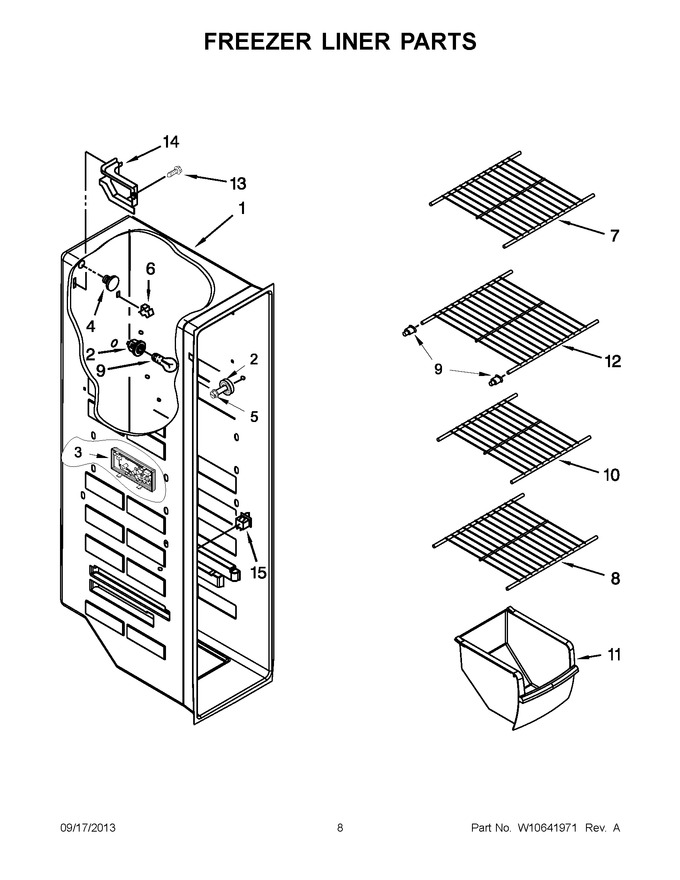

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
3	W10649522		Led Light Assembly   (Replaces: W10623514)		Appelez-nous	-
4	2223173		Plug, Fill Tube				$ 9.24
5	W10191952		Screw				$ 5.65
6	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
7	WPW10318949		Shelf, Wire   (Replaces: W10318949)				$ 77.11
8	WPW10318952		Shelf, Wire   (Replaces: W10318952)			Immediately	$ 92.48
9	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
10	WPW10318953		Shelf, Wire   (Replaces: W10318953)			Immediately	$ 87.76
11	WP2309758		Freezer Bin   (Replaces: 2309758)			Immediately	$ 130.69
12	WPW10318960		Shelf, Wire   (Replaces: W10318960)			Immediately	$ 94.63
13	WP489478		Screw   (Replaces: 489478)				$ 8.18
14	2160912		Cover, Wiring		Appelez-nous	-
15	2321286		Switch, Rocker Arm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
