Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 WPW10151378 Air Diffuser Assembly   (Replaces: W10151378) Special Order $ 327.13

3 WP2212240 Cover, Air Diffuser   (Replaces: 2212240) Special Order $ 138.15

4 W10550195 Louver Appelez-nous -
5 W10623513 Led Light Assembly, With Power Supply Appelez-nous -
6 WPW10141645 Screw   (Replaces: 489084) Special Order $ 8.05

7 W10649522 Led Light Assembly   (Replaces: W10623514) Appelez-nous -
8 2150331 Cover, Wiring Special Order $ 25.62

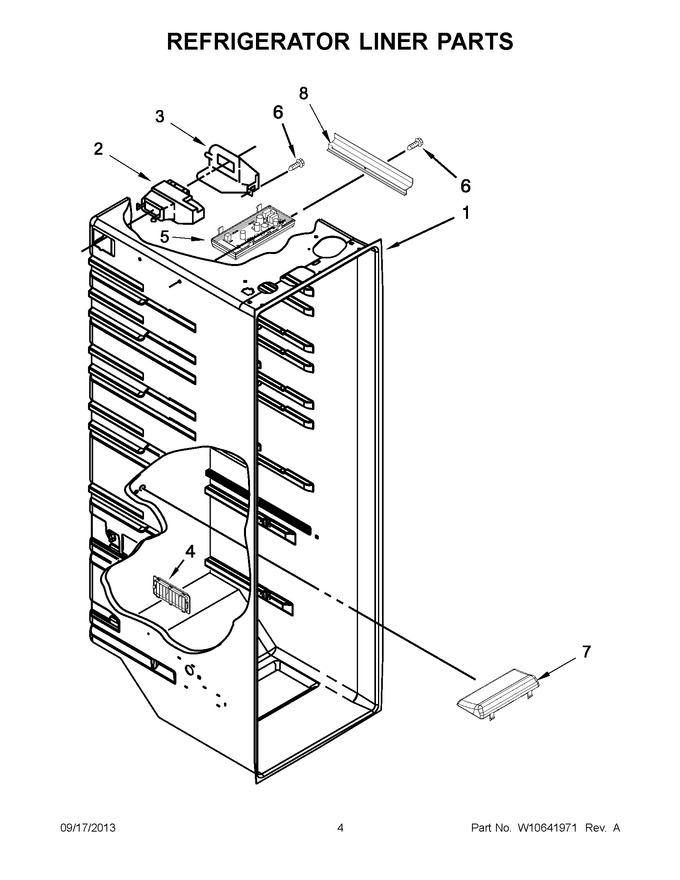

    View Diagram in Separate Window     Print Icon   Print Part List
