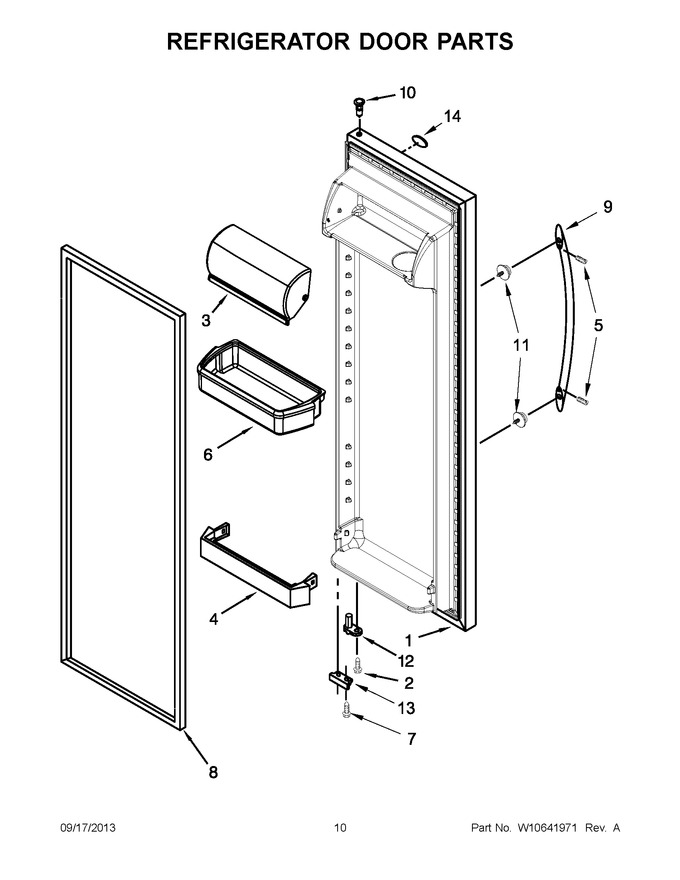

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10573435		Refrigerator Door (includes Item No.8) (sparkle Steel)   (Replaces: W10573435)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
6	WPW10321304		Bin, Door   (Replaces: W10549739)			Immediately	$ 44.73
7	WP489483		Screw   (Replaces: 489420)				$ 10.87
8	W10136732		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327161)			Immediately	$ 344.00
9	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 242.05
10	WP2182181		Thimble   (Replaces: 2182181)				$ 7.76
11	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
12	WP2182179		Door Closer, Upper Cam (thimble, Cam)   (Replaces: 2182178)			Immediately	$ 6.39
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
14	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 75.76
