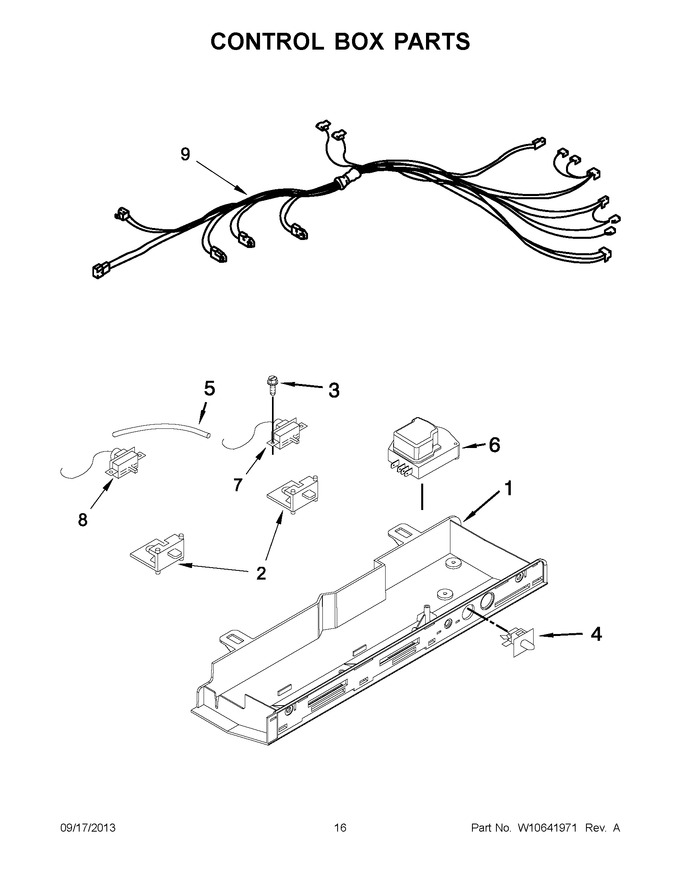

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10590040 | Control Box |
|
- | |||||
| 2 | 2161466 | Slide, Thermostat |
|
$ 22.28 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 4 | WP2149705 | Switch, Light (Replaces: 2321287) |
|
Immediately | $ 40.40 | ||||
| 5 | WP2196003 | Tube, Barrier Thermostat (Replaces: 2182150) |
|
$ 8.35 | |||||
| 6 | WP2188379 | Timer, Defrost (Replaces: 2321261) |
|
$ 203.07 | |||||
| 7 | WP2321305 | Thermostat (rc) (Replaces: 2321305) |
|
$ 253.83 | |||||
| 8 | WP2321289 | Thermostat (fc) (Replaces: 2321289) |
|
$ 241.70 | |||||
| 9 | W10603968 | Harness, Control Box |
|
- |
