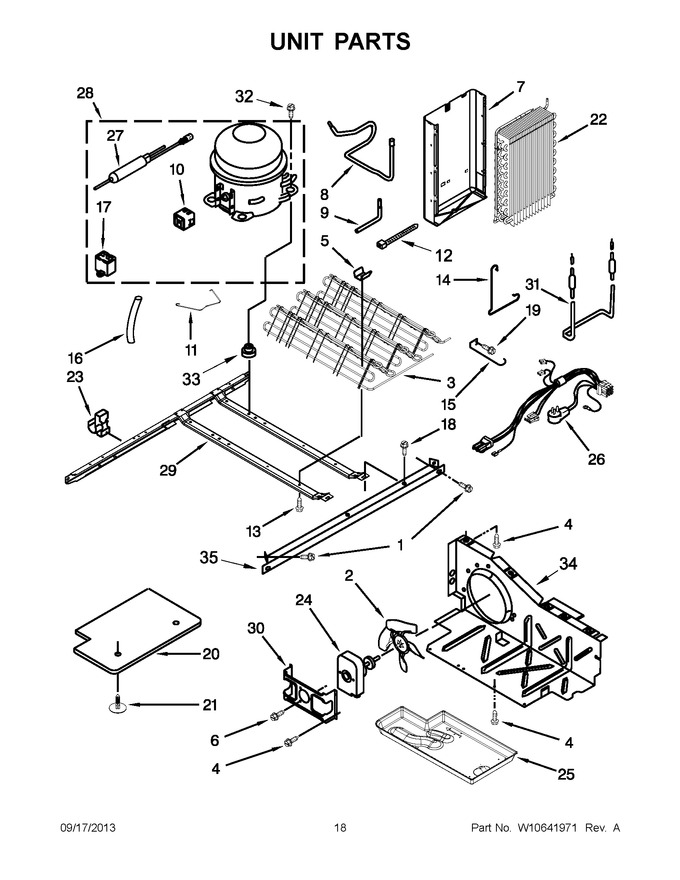

10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	489340		Bolt		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	WPW10194474		Heat Shield And Drain Pan   (Replaces: W10194474)				$ 119.53
8	2205764		Tube, Suction				$ 84.93
9	2325479		Tube, Process		Appelez-nous	-
10	WP2312007		Start Device   (Replaces: 2312007)				$ 180.66
11	W11661170		Strap, Bale   (Replaces: W10174384)			Immediately	$ 11.30
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.90
13	W11544659		Screw   (Replaces: 8281232)				$ 13.67
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	1105612		Guard, Fan				$ 40.58
16	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 20.30
17	2321245		Capacitor		Appelez-nous	-
18	WP489427		Screw   (Replaces: 489427)				$ 7.47
19	WP489478		Screw   (Replaces: 489478)				$ 7.75
20	W10466699		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator, Fc   (Replaces: 2188822)			Immediately	$ 339.85
23	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.59
24	W10837641		Fan, Motor   (Replaces: W10293680)		Appelez-nous	-
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10554745		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
28	W10183407		Compressor   (Replaces: W10120455)				$ 414.86
29	2304903		Frame, Unit Mounting				$ 233.03
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
31	WPW10123612		Heater, Defrost   (Replaces: W10123612)				$ 83.57
32	W11417341		Screw   (Replaces: W10476309)				$ 13.40
33	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 7.19
34	W10332806		Air Baffle				$ 102.82
35	W10207512		Rail, Unit Mounting		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 128.09
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	W10476817		Cord Adapter, Austrailian		Appelez-nous	-
NI	N/P		Refrigerant Charge 5.3 Oz. (r-134a)		Appelez-nous	-
NI	W10476819		Cord Adapter, British		Appelez-nous	-
NI	W11752087		Cord Adapter, European   (Replaces: W10476821)				$ 56.49
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 105.25
