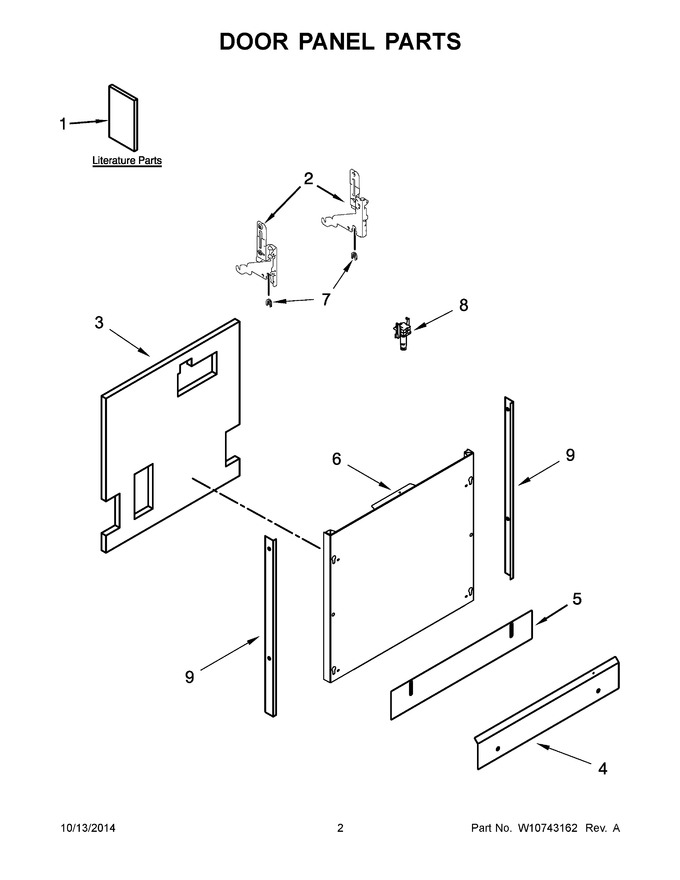

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		No Description		Appelez-nous	-
2	W10736548		Arm, Hinge (left Hand)				$ 261.62
3	W10736600		Insulation, Front Panel		Appelez-nous	-
4	W10736561		Panel, Toe				$ 440.26
5	W10736559		Panel, Access				$ 369.64
6	W10736601		Panel, Front		Appelez-nous	-
7	W10736547		Bushing, Hinge				$ 152.29
8	W10736554		Status Light		Appelez-nous	-
9	W10736602		Trim, Panel Side (left Hand)		Appelez-nous	-
2A	W10736552		Arm, Hinge (right Hand)				$ 261.70
9A	W10736603		Trim, Panel Side (right Hand)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10736606		Hardware, Custom Panel				$ 147.43
