Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10736453 Console Assembly In-Stock Immediately $ 385.86

2 W10736456 Button, Start Special Order $ 107.65

3 W10736451 Jumper, User Interface Appelez-nous -
4 W10736608 Switch, On/off Special Order $ 302.65

5 W10736449 Housing, User Interface In-Stock Immediately $ 517.14

6 W10736454 Buttons, Cycle Special Order $ 254.44

7 W10736455 Buttons, Option Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

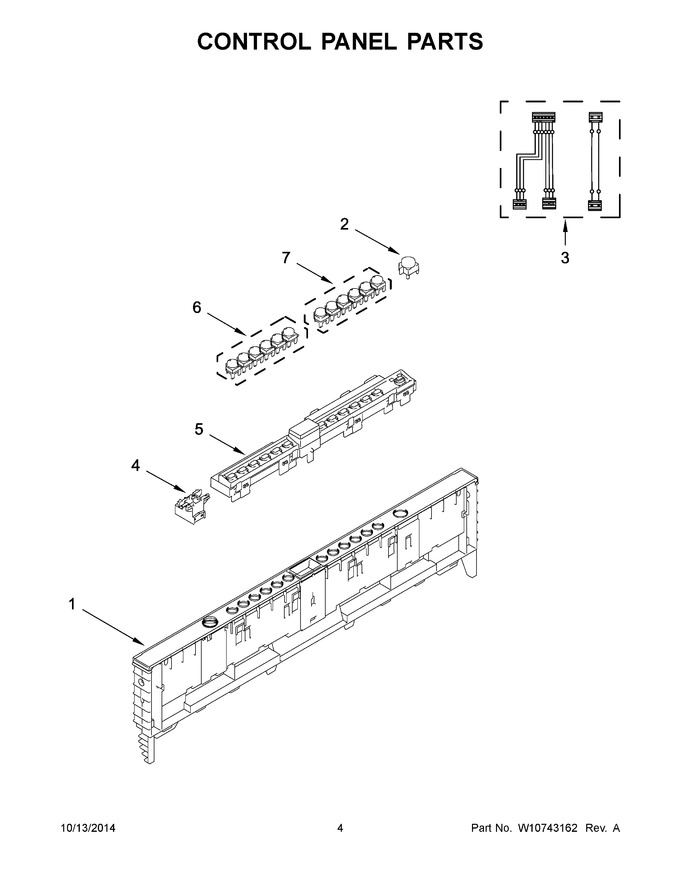

Diagram for JDB9600CWX0
