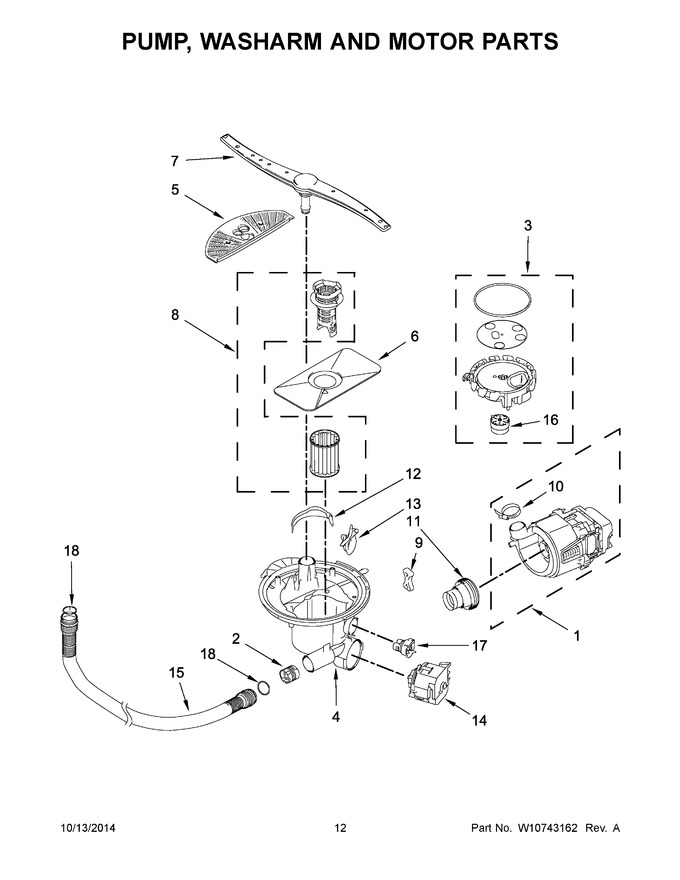

07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10736522		Motor, Heat Pump			Immediately	$ 523.86
2	W10736511		Valve, Check		Appelez-nous	-
3	W10736519		Cover, Oulet		Appelez-nous	-
4	W10736510		Sump With Seal (also Order Item 5)				$ 426.09
5	W10736567		Screen, Sump Cover		Appelez-nous	-
6	W10736569		Screen, Fine Filter		Appelez-nous	-
7	W10736566		Sprayarm, Lower				$ 261.39
8	W10736576		Filter Cup Assembly		Appelez-nous	-
9	W10736524		Clip, Heat Pump		Appelez-nous	-
10	W10789434		Clamp, Hose   (Replaces: W10736523)			Immediately	$ 14.40
11	W10736525		Grommet, Heat Pump		Appelez-nous	-
12	W10736512		Cap, Suction		Appelez-nous	-
13	W10736513		Lid, Drain Pump		Appelez-nous	-
14	W10736526		Motor, Drain				$ 407.60
15	W10736516		Hose, Inlet Tank To Sump		Appelez-nous	-
16	W10736520		Motor, Outlet Cover		Appelez-nous	-
17	W10736514		Optical Water Indicator				$ 297.72
18	W10736517		O-ring, Sump Hose		Appelez-nous	-
