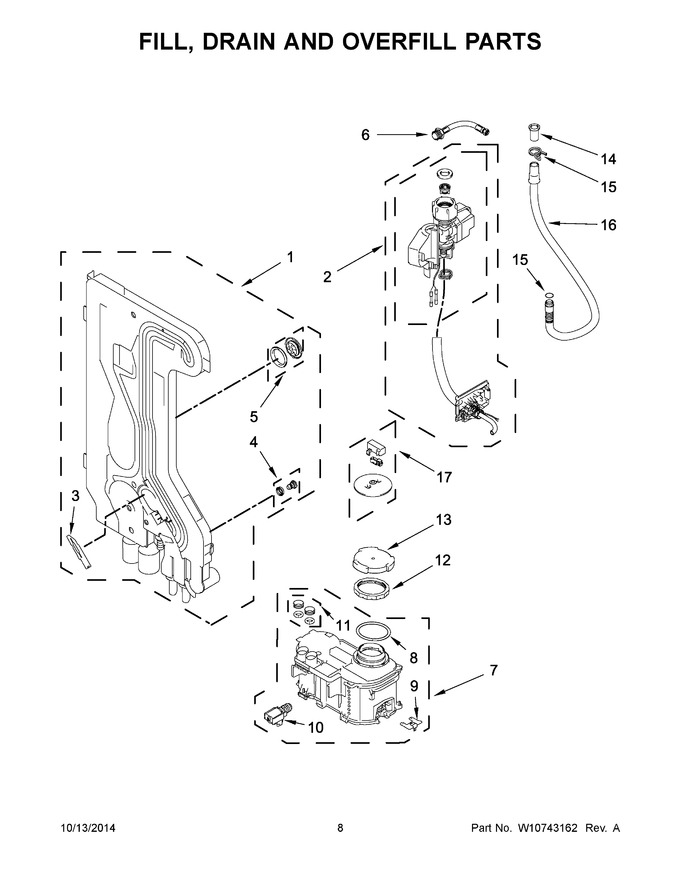

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10736498		Tank, Inlet				$ 644.11
2	W10736527		Fill Valve Assembly			Immediately	$ 635.73
3	W10736501		Switch, Reed		Appelez-nous	-
4	W10736500		Bolt, Tank Mount (includes Gasket)		Appelez-nous	-
5	W10736499		Nut, Inlet		Appelez-nous	-
6	W10736528		Adapter, Inlet Hose				$ 267.47
7	W10736502		Tank, Softener				$ 339.92
8	W10736506		Gasket, Tank Inlet		Appelez-nous	-
9	W10736503		Sensor, Tank Softener		Appelez-nous	-
10	W10736509		Valve, Tank Softener		Appelez-nous	-
11	W10736505		Gasket Kit, Tank Hoses		Appelez-nous	-
12	W10736507		Nut, Tank		Appelez-nous	-
13	W10736508		Cover, Tank		Appelez-nous	-
14	W10736532		Insert, Drain Hose				$ 211.05
15	WP285655		Clamp, Hose   (Replaces: W10736530)			Immediately	$ 8.81
16	W10736529		Hose, Drain				$ 178.28
17	W10736539		Switch, Overfill (base)				$ 301.70
