Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10736577 Dishrack Assembly, Lower Special Order $ 402.43

2 W10736578 Wheel, Dishrack Special Order $ 52.12

3 W10736595 Basket, Silverware Appelez-nous -
4 W10736581 Tine Row, Fold Down Appelez-nous -
5 W10736584 Retainer, Tine Row Appelez-nous -
6 W10736580 Clip, Pivot Appelez-nous -
7 W10736583 Tine Row, Fold Down Appelez-nous -
8 W10736579 Handle, Dishrack Special Order $ 178.30


    View Diagram in Separate Window     Print Icon   Print Part List

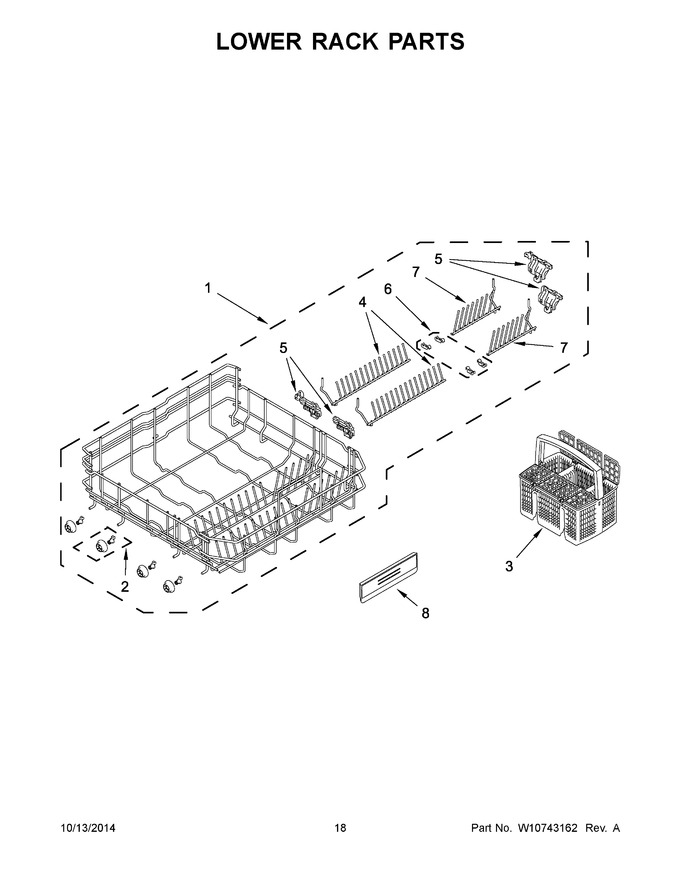

Diagram for JDB9600CWX0
