Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10309090 Screw   (Replaces: W10309090) In-Stock Immediately $ 76.86

2 W10736465 Switch, Door In-Stock Immediately $ 261.94

3 W10736461 Inner Door Special Order $ 838.18

4 W10736463 Seal, Door Bottom Special Order $ 362.79

5 W10736457 Dispenser Assembly In-Stock Immediately $ 411.50

6 W10736464 Channel, Overflow Appelez-nous -
7 W10736558 Wiring Harness Special Order $ 406.58

8 W10736610 Sensor, Rinse Aid Appelez-nous -
9 W10736458 Gasket, Dispenser Appelez-nous -
10 W10736459 Lid, Rinse Aid Appelez-nous -
11 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

12 W10736460 Lid, Dispenser Appelez-nous -

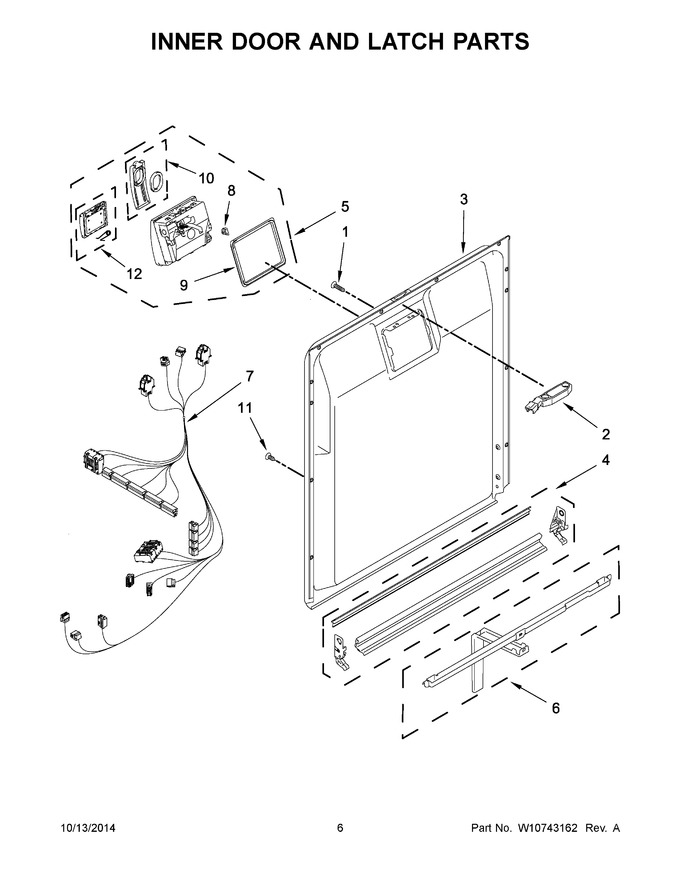

    View Diagram in Separate Window     Print Icon   Print Part List
