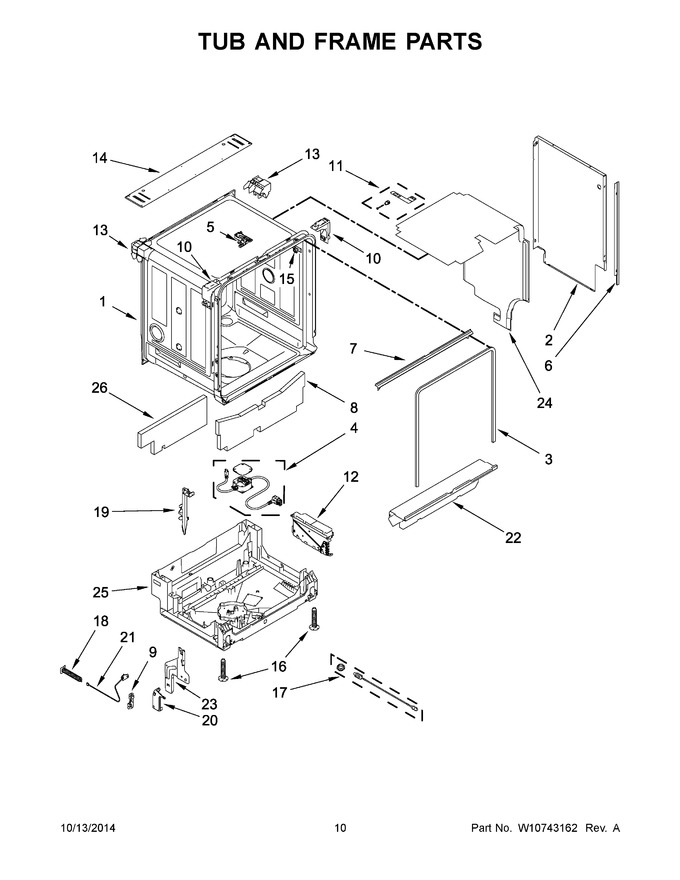

06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Tub (not A Serviceable Part)		Appelez-nous	-
2	W10736475		Panel, Side (left Hand)				$ 371.21
3	W10736486		Gasket, Tub				$ 291.03
4	W11188410		Cord, Power   (Replaces: W10736557)			Immediately	$ 132.65
5	W10736487		Strike, Latch				$ 230.46
6	W10736482		Trim, Tank (side)				$ 314.71
7	W10736483		Trim, Tank (top)				$ 160.30
8	W10736481		Shield, Tub Bottom (front)		Appelez-nous	-
9	W10736550		Door Balance Assembly				$ 153.26
10	W10736489		Holder, Side Panel (front)				$ 240.70
11	W10736496		Bracket, Mounting (top Mount)				$ 120.55
12	WPW10736555		Control, Electronic   (Replaces: W10736555)				$ 762.97
13	W10736488		Holder, Side Panel (rear)				$ 246.87
14	W10736493		Barrier, Vapor		Appelez-nous	-
15	W10736497		Wheel, Mounting		Appelez-nous	-
16	W10736535		Leg, Leveling (front)		Appelez-nous	-
17	W10736543		Adjuster, Leveling Leg (rear)		Appelez-nous	-
18	W10736604		Spring, Door		Appelez-nous	-
19	W10736531		Holder, Drain/fill Hose		Appelez-nous	-
20	W10736549		Cover, Hinge (left Hand)		Appelez-nous	-
21	W10736546		Cable, Door				$ 170.68
22	W10736484		Brace, Lower Rail		Appelez-nous	-
23	W10736545		Plate, Hinge (left Hand)				$ 284.88
24	W10736478		Shield, Tub Sound		Appelez-nous	-
25	W10736533		Base, Tub				$ 375.22
26	W10736479		Shield, Tub Bottom (rear)		Appelez-nous	-
11A	W10736495		Bracket, Mounting (alternate Side Mount)		Appelez-nous	-
16A	W10736544		Leg, Leveling (rear)		Appelez-nous	-
20A	W10736553		Cover, Hinge (right Hand)		Appelez-nous	-
23A	W10736551		Plate, Hinge (right Hand)				$ 271.52
2A	W10736477		Panel, Side (right Hand)				$ 371.21
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10736541		Counterweight, Base		Appelez-nous	-
