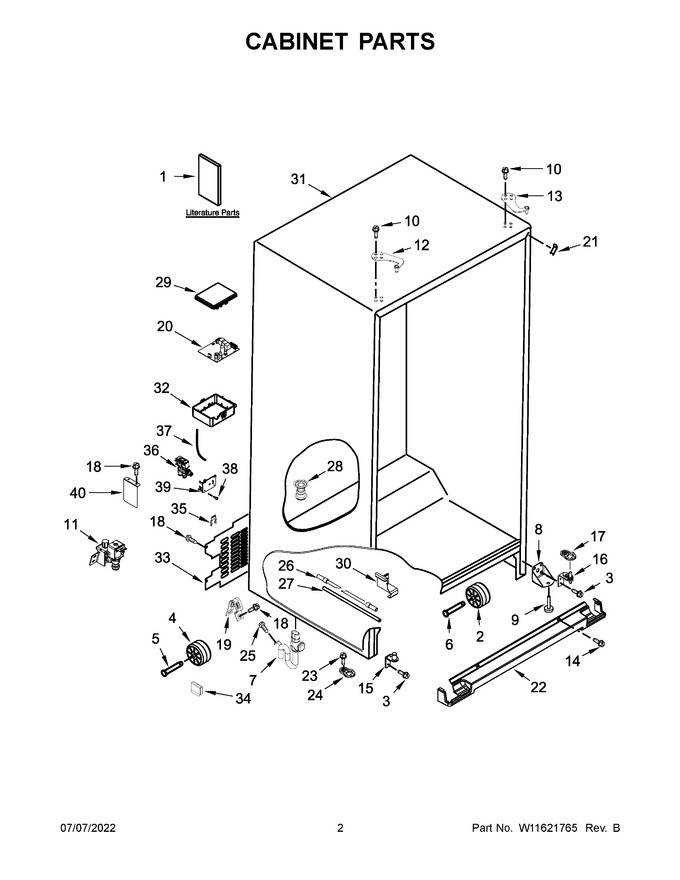

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11484052		Use & Care Guide		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 7.62
4	12477102		Roller			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 17.84
7	W11519143		Tube, Drain   (Replaces: W11293073)				$ 36.52
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 63.15
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
10	W11579735		Screw, Hinge   (Replaces: W10290781)			Immediately	$ 14.03
11	W11512399		Valve, Inlet   (Replaces: W11451511)			Immediately	$ 48.78
12	W10901052		Hinge, Top (freezer) (black)				$ 72.99
13	W11568758		Hinge, Top (refrigerator) (black)   (Replaces: W10901047)				$ 23.81
14	WP98008545		Screw (black)   (Replaces: W10308487)				$ 17.71
15	W11269265		Hinge, Bottom (freezer) (black)   (Replaces: W11126854)				$ 67.46
16	W11311416		Hinge, Bottom (refrigerator - Also Includes Door Cam) (black)   (Replaces: W11084348)				$ 67.60
17	W11311686		Closer, Door (refrigerator) (black)   (Replaces: W10877807)				$ 13.35
18	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
19	W11234470		Clamp, Power Cord				$ 21.07
20	W11620204		Electronic Control   (Replaces: W11440350)			Immediately	$ 316.81
21	67003485		Filler, Wrapper (black)   (Replaces: 12587703B)			Immediately	$ 21.09
22	WPW10713158		Grille (black)   (Replaces: W10713158)				$ 93.73
23	WP489483		Screw   (Replaces: W10142234)				$ 10.87
24	W10770895		Closer, Door (freezer) (black)				$ 15.03
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 108.79
27	WPW10279885		Tube, Filter Outlet   (Replaces: W10279885)				$ 122.61
28	W10247979		Fitting, Drain				$ 64.59
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 81.10
30	W10499011		Assembly, Bracket			Immediately	$ 66.33
31	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 113.44
33	W11453073		Cover, Unit				$ 65.00
34	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.31
35	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.19
36	WPW10341320		Assembly, Dual Water Valve   (Replaces: W10341320)			Immediately	$ 263.68
37	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 125.94
38	WPW10141625		Screw   (Replaces: W10141625)				$ 21.16
39	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 76.90
40	W10336736		Cover, Roller		Appelez-nous	-
12A	W11590581		Hinge, Top (freezer) (grey)   (Replaces: W10901054)				$ 23.06
13A	W11409290		Hinge, Top (refrigerator) (grey)   (Replaces: W10901049)				$ 67.12
14A	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 7.79
15A	W11293374		Hinge, Bottom (freezer) (grey)   (Replaces: W11126848)				$ 69.83
16A	W11292872		Hinge, Bottom (refrigerator - Also Includes Door Cam) (grey)   (Replaces: W11084346)				$ 68.66
17A	W11311687		Closer, Door (refrigerator) (grey)   (Replaces: W10877804)				$ 13.40
1A	W11575235		Tech Sheet		Appelez-nous	-
1B	W11559378		Energy Guide		Appelez-nous	-
21A	WP12587703AP		Filler, Wrapper (grey)   (Replaces: 12587703AP)				$ 7.69
22A	WPW10713153		Grille (grey)   (Replaces: W10713153)			Immediately	$ 129.07
24A	W10876191		Closer, Door (freezer) (grey)   (Replaces: W10770893)				$ 17.12
35A	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.18
