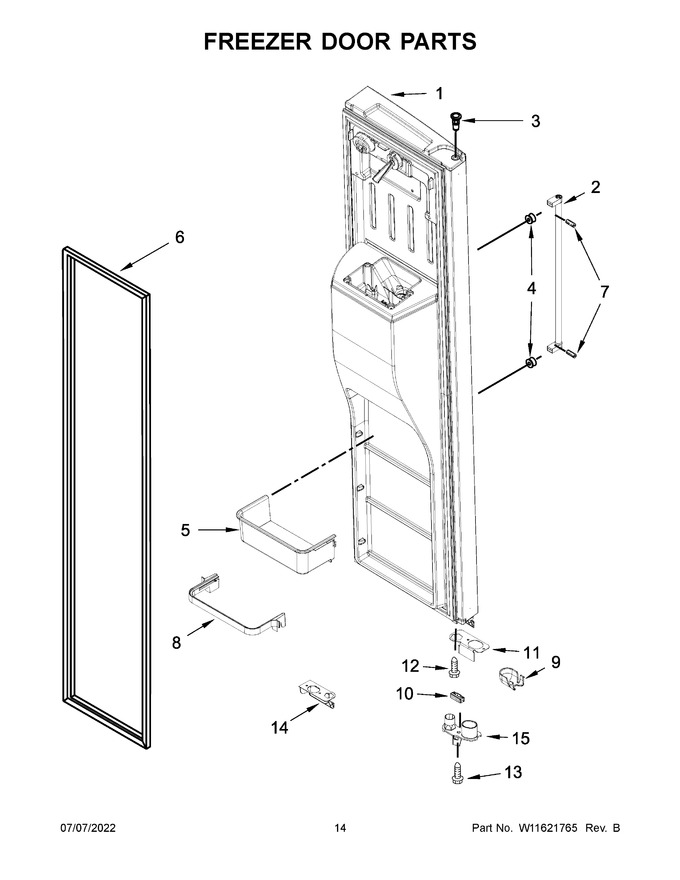

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11621810		Door, Freezer (includes Item 6 And Dispenser Front Parts) (black Stainless)   (Replaces: W11533395)		Appelez-nous	-
2	W11340150		Handle (stainless)   (Replaces: W11252159)				$ 200.19
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
4	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
5	WPW10434529		Bin, Door   (Replaces: W10434529)				$ 77.78
6	WPW10249913		Gasket, Door (black)   (Replaces: W10249913)				$ 321.05
7	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
8	WPW10494336		Frame, Door Bin   (Replaces: W10494336)				$ 243.61
9	W10323148		Cover, Wire				$ 42.25
10	W10407187		Bumper, Door (black)				$ 48.34
11	W11293380		Bracket, Door Stop   (Replaces: W10910405)				$ 69.21
12	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
13	W11298164		Screw   (Replaces: W11204458)		Appelez-nous	-
14	W10632060		Cover, Door Stop (black)				$ 22.30
15	W11607100		Closer, Upper Cam Door (black)   (Replaces: W10257204)			Immediately	$ 13.98
15A	WPW10257206		Closer, Upper Cam Door (grey)   (Replaces: W10257206)			Immediately	$ 13.18
1A	W11604155		Door, Freezer (includes Item 6 And Dispenser Front Parts) (stainless)   (Replaces: W11536864)				$ 1,476.82
6A	WPW10355585		Gasket, Door (grey)   (Replaces: W10249917)				$ 337.27

    View Diagram in Separate Window       Print Part List
