Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10271543 Connector, Water Tube   (Replaces: W10271543) In-Stock Immediately $ 35.43

2 W11458267 Blade, Fan   (Replaces: 2225834) In-Stock Immediately $ 25.19

3 W11708426 Assembly, Condenser (also Order The Following Lokring Parts)   (Replaces: W10240365) Special Order $ 271.19

4 W10142255 Screw Appelez-nous -
5 W11409190 Tube, Drain   (Replaces: W10862105) In-Stock Immediately $ 65.34

6 WPW10171469 Screw   (Replaces: W10171469) In-Stock Immediately $ 11.61

7 WPW10277958 Connector, Water   (Replaces: W10277958) In-Stock Immediately $ 69.57

8 W11751592 Sleeve   (Replaces: W10303521) In-Stock Immediately $ 21.32

9 3400524 Screw   (Replaces: W10142287) Special Order $ 13.28

10 W10815861 Clip, Bottom Cover Special Order $ 15.80

11 W11608695 Assembly, Suction Tube   (Replaces: W11403896) Special Order $ 78.68

12 W10683556 Clip, Condenser   (Replaces: W10248621) Special Order $ 19.38

13 W11567494 Assembly, Inverter Box   (Replaces: W11367579) Special Order $ 392.10

14 W11558176 Tube, Process   (Replaces: W11509632) Appelez-nous -
15 WP2205813 Tie, Wire   (Replaces: 2205813) Special Order $ 8.11

16 W11546605 Evaporator (also Order The Following Lokring Parts)   (Replaces: W11357917) In-Stock Immediately $ 253.33

17 W11623163 Clip   (Replaces: 2304287) Appelez-nous -
18 W11127829 Motor, Condenser Fan   (Replaces: W10909387) In-Stock Immediately $ 185.05

19 W10714793 Tray, Evaporator (includes Gasket) Special Order $ 164.33

20 W11517386 Assembly, Heat Shield/drain Pan Appelez-nous -
21 W11109499 Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035) In-Stock Immediately $ 39.12

22 W11661927 Assembly, Unit Wire   (Replaces: W11025794) Special Order $ 107.92

23 W10680691 Baseplate Appelez-nous -
24 W11621729 Assembly, Rc Heat Shield   (Replaces: W11438167) Appelez-nous -
25 WPW10251467 Baffle, Air   (Replaces: W10251467) Special Order $ 84.80

26 W11566485 Heater, Defrost   (Replaces: W11400732) Special Order $ 118.72

27 W10284726 Cover, Unit Bottom Special Order $ 115.91

28 W11557671 Compressor (also Order The Following Lokring Parts)   (Replaces: W11332037) In-Stock Immediately $ 728.13

29 WPW10169124 Grommet   (Replaces: 10835903) In-Stock Immediately $ 7.55

30 W11590197 Assembly, 3 Way Valve (also Order The Following Lokring Parts)   (Replaces: W11434102) In-Stock Immediately $ 114.11

31 W11595221 Assembly, Rc Dual Evaporator (also Order The Following Lokring Parts)   (Replaces: W11363487) In-Stock Immediately $ 391.91

32 W11720794 Pan, Drip   (Replaces: W10317862) Special Order $ 147.99

33 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 14.77

34 W11553819 Insulation, Sound   (Replaces: 2215468) In-Stock Immediately $ 14.77

35 W11608697 Eps Back (right Hand)   (Replaces: W11405291) Appelez-nous -
36 W11566486 Probe, Heat   (Replaces: W11399994) Appelez-nous -
37 10623002 Clip, Evaporator Special Order $ 12.11

38 W11621725 Heater, Rc Defrost   (Replaces: W11346672) Special Order $ 120.84

39 W11595221 Evaporator, Rc Dual   (Replaces: W11363481) In-Stock Immediately $ 391.91

40 W11621727 Clip, Rc Defrost Heater   (Replaces: W11363484) Appelez-nous -
41 W11417341 Screw Special Order $ 14.07

16A W11506619 8 Nk Ms 00 (suction Line To Evaporator) In-Stock Immediately $ 25.88

16B W11504450 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) In-Stock Immediately $ 46.52

21A W11504445 5/4 Nr Ms 00 (suction Line To Condenser) In-Stock Immediately $ 28.92

21B W11506623 5 Nk Ms 00 (high Side To Condenser) In-Stock Immediately $ 22.00

28A W11504431 7/5 Nr Ms 00 (high Pressure Side To Compressor) In-Stock Immediately $ 27.13

28B W11504415 8.5/8 Nr Ms 00 (suction Tube To Compressor) In-Stock Immediately $ 25.89

28C W11504416 8.5/6 Nr Ms 00 (charging Tube To Compressor) In-Stock Immediately $ 27.51

28D W11506635 Tube, Charging (1/4" W/ Schrader Valve) In-Stock Immediately $ 37.03

30A W11506623 5 Nk Ms 00 (high Side To Condenser) In-Stock Immediately $ 22.00

30B W11506625 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) In-Stock Immediately $ 20.94

30C W11506625 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) In-Stock Immediately $ 20.94

31A W11506619 8 Nk Ms 00 (suction Line To Evaporator) In-Stock Immediately $ 25.88

31B W11506620 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) In-Stock Immediately $ 32.10

35A W11621724 Eps Back (left Hand)   (Replaces: W11566549) Appelez-nous -
3A W11504445 5/4 Nr Ms 00 (suction Line To Condenser) In-Stock Immediately $ 28.92

3B W11504431 7/5 Nr Ms 00 (high Pressure Side To Compressor) In-Stock Immediately $ 27.13

NI NP Cabinet (not A Servicable Part) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

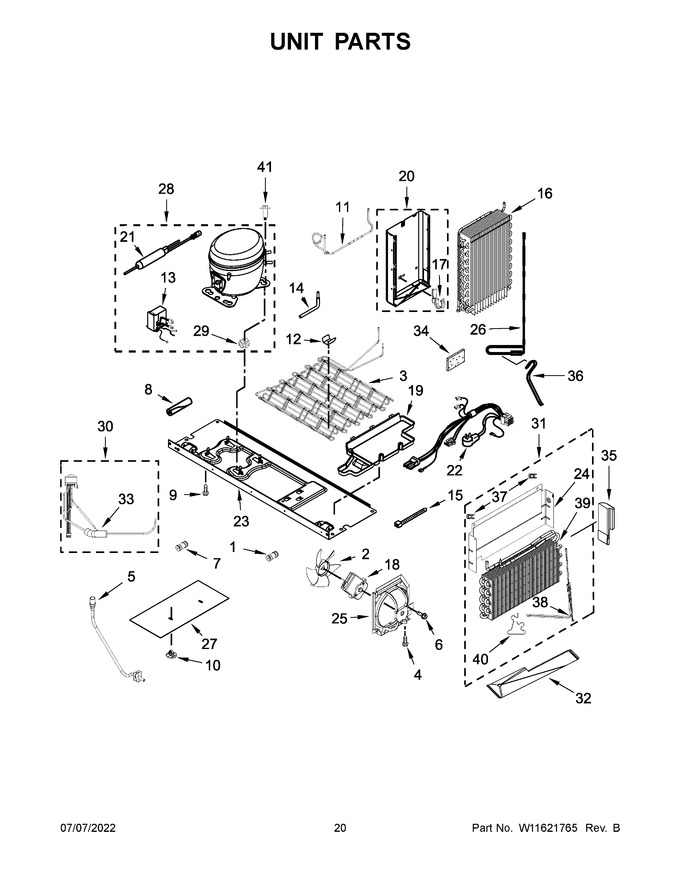

Diagram for KRSC700HPS04
