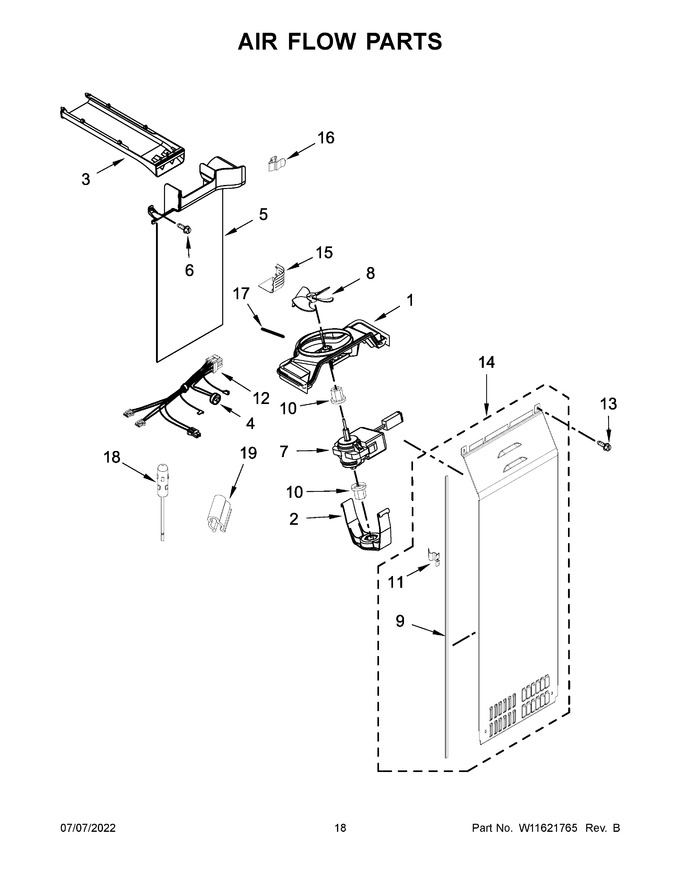

10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Scroll, Fan   (Replaces: W10251462)				$ 29.24
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
3	W10260380		Duct, Upper Air		Appelez-nous	-
4	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
5	WPW10382898		Duct, Freezer Air   (Replaces: W10382898)				$ 82.30
6	WP489478		Screw   (Replaces: W10001260)				$ 7.75
7	W11833137		Motor, Fan   (Replaces: W11243741)		Appelez-nous	-
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.17
11	W11232019		Clip, Evaporator Cover   (Replaces: W10369602)			Immediately	$ 10.85
12	W11658799		Assembly, Evaporator Fan Wire   (Replaces: W11414185)		Appelez-nous	-
13	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.19
14	WPW10388268		Cover, Evaporator   (Replaces: W10388268)				$ 244.21
15	W10260382		Cover, Light				$ 76.74
16	W10331728		Clip, Air Duct				$ 77.32
17	W11205489		Foam		Appelez-nous	-
18	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 112.83
19	W11546684		Clip, Evaporator Thermistor   (Replaces: W11437914)			Immediately	$ 11.74
