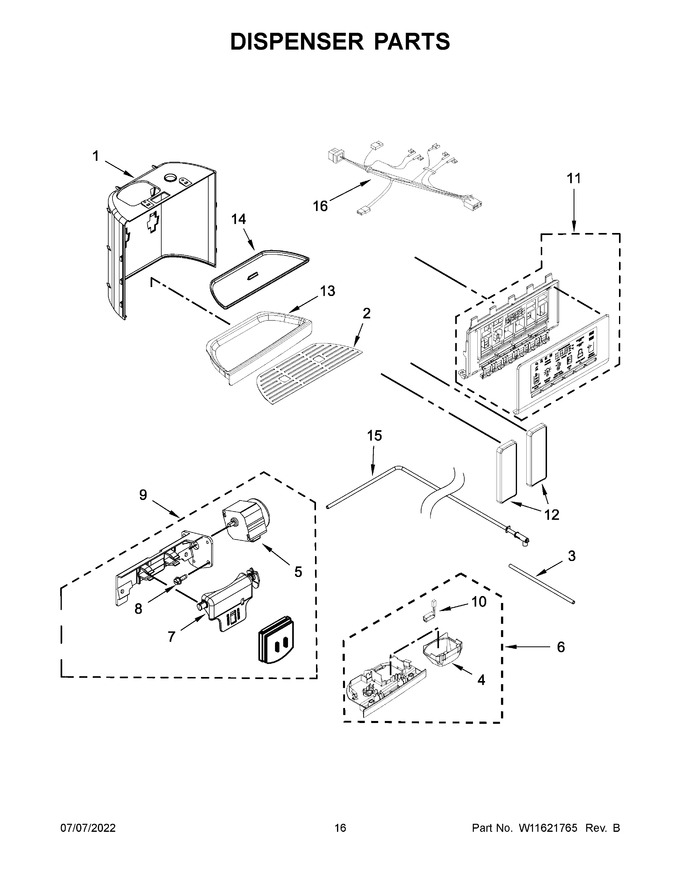

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317259 | Wall, Dispenser False (black) |
|
Immediately | $ 127.26 | ||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 72.05 | |||||
| 3 | W11533098 | Tube, Dispenser Water Valve (Replaces: W11269258) |
|
- | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 22.80 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 99.16 | |||||
| 6 | W10353593 | Assembly, Seperator |
|
$ 129.03 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 39.86 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.49 | |||||
| 9 | W11130210 | Assembly, Ice Door (Replaces: W10781990) |
|
$ 152.91 | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 80.43 | |||||
| 11 | W11623068 | Assembly, Stealth User Interface (Replaces: W11384528) |
|
$ 400.49 | |||||
| 12 | W11561037 | Pad, Ice And Water (black) (Replaces: W10317253) |
|
$ 78.98 | |||||
| 13 | W10317265 | Tray, Housing (black) |
|
$ 59.23 | |||||
| 14 | W11404939 | Drip Tray, Insert (black) |
|
$ 58.81 | |||||
| 15 | W11567542 | Tube, Dual Dispenser Water (Replaces: W10403778) |
|
- | |||||
| 16 | W11025771 | Harness, Wire |
|
$ 75.62 | |||||
| 12A | WPW10346924 | Pad, Ice And Water (grey) (Replaces: W10346924) |
|
Immediately | $ 275.86 |
