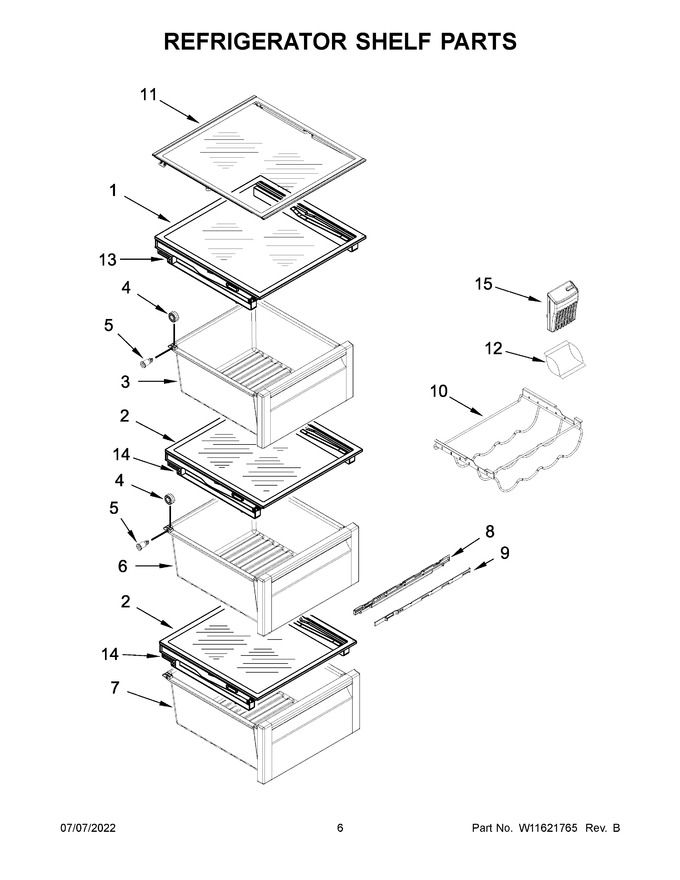

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10440265 | Assembly, Snack Pan Cover (Replaces: W10440265) |
|
$ 245.70 | |||||
| 2 | WPW10440266 | Cover, Assembly (Replaces: W10440266) |
|
$ 273.24 | |||||
| 3 | WPW10542037 | Pan, Snack (Replaces: W10542037) |
|
Immediately | $ 313.85 | ||||
| 4 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.99 | ||||
| 5 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.05 | ||||
| 6 | WPW10531081 | Pan, Crisper (Replaces: W10531081) |
|
Immediately | $ 197.25 | ||||
| 7 | WPW10531082 | Pan, Meat (Replaces: W10531082) |
|
$ 140.97 | |||||
| 8 | W10316452 | Housing, Humidity |
|
$ 88.24 | |||||
| 9 | W10257334 | Slide, Humidity |
|
$ 58.24 | |||||
| 10 | W10395554 | Wine Rack |
|
$ 158.69 | |||||
| 11 | W11300659 | Assembly, Shelf (Replaces: W11180785) |
|
Immediately | $ 243.57 | ||||
| 12 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 13 | W11766461 | Rail, Track (left Side) (Replaces: W11427425) |
|
$ 33.85 | |||||
| 14 | W11678574 | Rail, Track (left Side) (Replaces: W10805083) |
|
Immediately | $ 21.54 | ||||
| 15 | WPW10408747 | Holder, Filter (Replaces: W10408747) |
|
$ 31.06 | |||||
| 13A | W11678966 | Rail, Track (right Side) (Replaces: W11427426) |
|
$ 21.60 | |||||
| 14A | W11685636 | Rail, Track (right Side) (Replaces: W10805082) |
|
Immediately | $ 21.54 |
