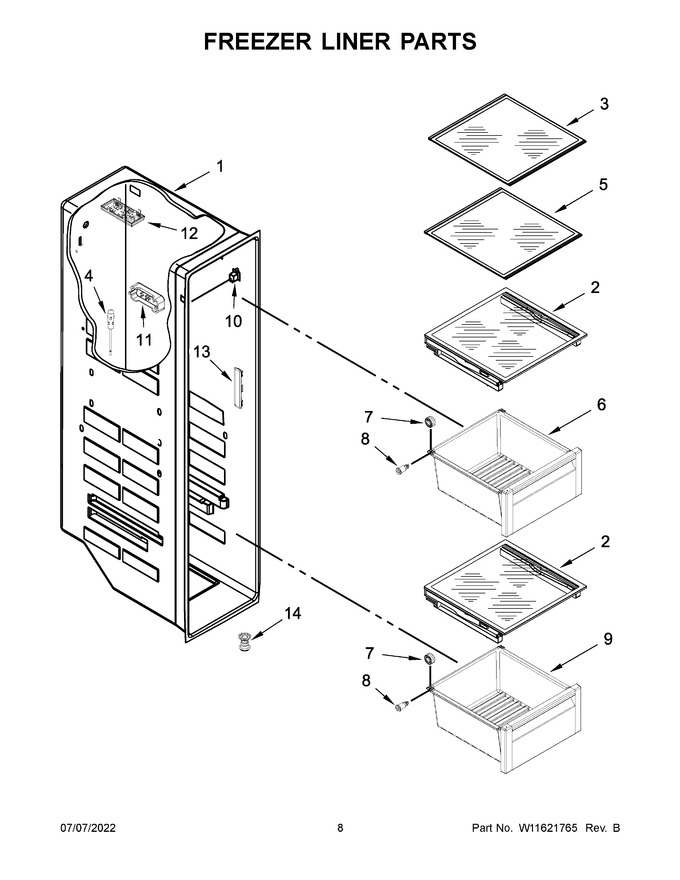

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W10644644 | Cover Assembly |
|
- | |||||
| 3 | W11340165 | Shelf Assembly, Upper (Replaces: W11180789) |
|
$ 242.83 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10438761) |
|
Immediately | $ 33.60 | ||||
| 5 | W11340169 | Shelf Assembly, Lower (Replaces: W11180790) |
|
$ 242.70 | |||||
| 6 | W10725170 | Freezer Pan, Middle |
|
Immediately | $ 138.75 | ||||
| 7 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 8 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 9 | W10726001 | Freezer Pan, Lower |
|
- | |||||
| 10 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | W11226500 | Assembly, Led (Replaces: W10724473) |
|
Immediately | $ 117.53 | ||||
| 13 | W10876365 | Lighting, Led-strip (Replaces: W10826780) |
|
Immediately | $ 94.76 | ||||
| 14 | W10370680 | Fitting, Drain |
|
$ 37.83 |
