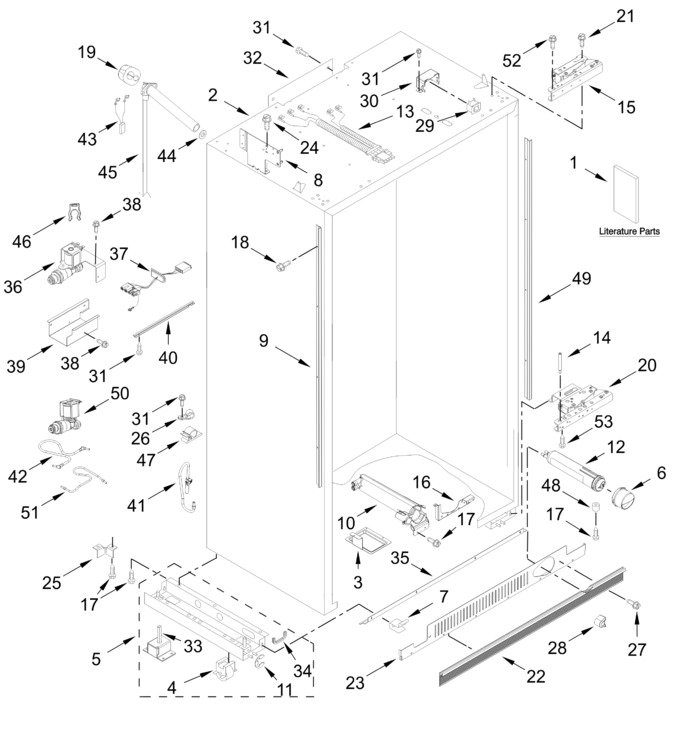

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARIF06CCFE9BD0F0FDB975806FEDA58D816 | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2318189 | Tray, Filter Drip |
|
$ 148.73 | |||||
| 4 | WPW10138054 | Roller Assembly (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860229 | Base Assembly, Support (fc, Left Hand) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 6 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 50.68 | ||||
| 7 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 43.26 | |||||
| 8 | W11042558 | Bracket, Grille (grey, Left Hand, Includes Rivet Nut) |
|
$ 95.20 | |||||
| 9 | W10611999 | Trim, Side (grey, Left Hand) |
|
Immediately | $ 250.20 | ||||
| 10 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 11 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 13 | W11453279 | Wire Assembly, Light Switch |
|
$ 109.17 | |||||
| 14 | W10234202 | Pin, Door Stop |
|
$ 91.73 | |||||
| 15 | W10691145 | Hinge, Top (grey, Left Hand) |
|
Immediately | $ 472.48 | ||||
| 16 | W11755873 | Bracket, Filter (Replaces: W11695780) |
|
$ 80.33 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 19 | W11490590 | Cover, Fill Tube |
|
- | |||||
| 20 | W10691533 | Hinge, Bottom (grey, Left Hand) |
|
$ 624.95 | |||||
| 21 | W11721628 | Screw (Replaces: W11370632) |
|
Immediately | $ 14.78 | ||||
| 22 | W10859915 | Skirt, Bottom Grille (Replaces: W10188551) |
|
$ 249.29 | |||||
| 23 | W11739148 | Grille, Bottom (black) (Replaces: W11695788) |
|
$ 214.59 | |||||
| 24 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 25 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 26 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 27 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 28 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 29 | W11624786 | Switch, Light (Replaces: W11593919) |
|
Immediately | $ 43.11 | ||||
| 30 | W11624203 | Cover, Switch (Replaces: W11577783) |
|
- | |||||
| 31 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 32 | 2215612 | Cover, Air Duct |
|
- | |||||
| 33 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 34 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 35 | W10740171 | Trim, Top Grille |
|
$ 186.09 | |||||
| 36 | W11225845 | Valve, Solenoid (Replaces: W10574769) |
|
Immediately | $ 120.60 | ||||
| 37 | W11479397 | Wire Assembly, Water Valve |
|
$ 78.74 | |||||
| 38 | WPW10141604 | Screw (Replaces: 487871) |
|
$ 8.85 | |||||
| 39 | W10619291 | Shield, Valve Electrical |
|
- | |||||
| 40 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 41 | W11690636 | Waterline, Cust Connect (Replaces: W10577944) |
|
$ 130.54 | |||||
| 42 | W10619899 | Tube, Filter Inlet |
|
$ 46.24 | |||||
| 43 | W11623284 | Heater, Fill Tube (Replaces: W11489776) |
|
- | |||||
| 44 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 45 | W11662302 | Assembly, Water Inlet Tube (Replaces: 2314049) |
|
- | |||||
| 46 | W10782423 | Locking Ring (1/4") |
|
$ 24.37 | |||||
| 47 | W10663352 | Clip |
|
$ 21.91 | |||||
| 48 | 2005433 | Spacer, Door Skin (top) |
|
$ 23.33 | |||||
| 49 | W10612000 | Trim, Side (grey, Right Hand) |
|
$ 248.70 | |||||
| 50 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 132.98 | ||||
| 51 | W10635851 | Tube, Filter Outlet |
|
$ 88.57 | |||||
| 52 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 53 | W10004860 | Screw |
|
Immediately | $ 15.50 | ||||
| W11490758 | Use And Care Guide |
|
- | ||||||
| W10860448 | Base Assembly, Support (rc, Right Hand) (Replaces: W10138423) |
|
Immediately | $ 383.00 | |||||
| W11648173 | Energy Guide |
|
- | ||||||
| W11042559 | Bracket, Grille (grey, Right Hand, Includes Rivet Nut) |
|
$ 97.28 | ||||||
| W11590464 | Installation Instructions |
|
- | ||||||
| W10691534 | Hinge, Bottom (grey, Right Hand) |
|
Immediately | $ 655.24 | |||||
| W11494195 | Tech Sheet |
|
- | ||||||
| W10782424 | Locking Ring(5/16") |
|
- | ||||||
| W11700299 | Hinge, Top (grey, Right Hand) (Replaces: W10691136) |
|
Immediately | $ 507.95 |
