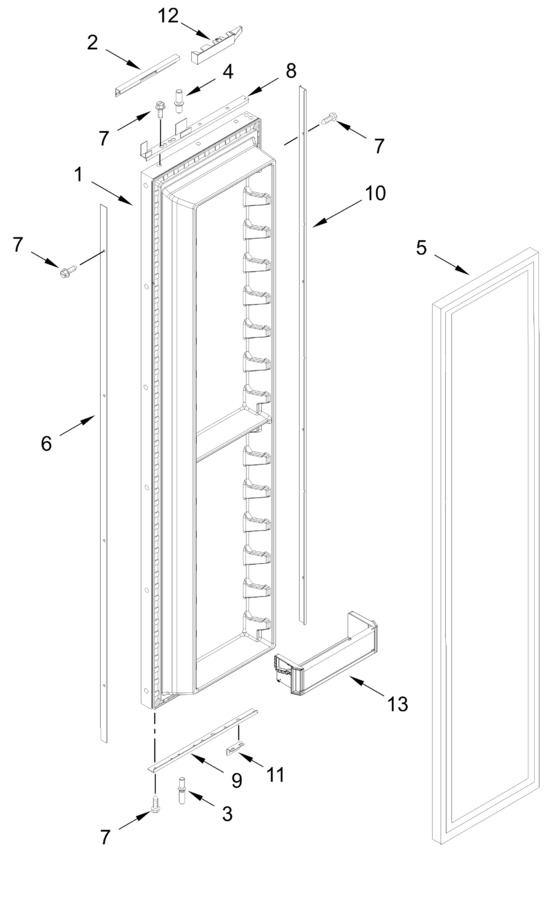

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633028 | Door, Freezer (includes Door Gasket) (Replaces: W11570421) |
|
$ 1,451.20 | |||||
| 2 | W10775728 | Cover, Top Door |
|
$ 135.14 | |||||
| 3 | W11337869 | Pin, Bottom Door |
|
$ 61.82 | |||||
| 4 | W10234194 | Pin, Top Door |
|
$ 16.55 | |||||
| 5 | W10800818 | Gasket, Door (black) (Replaces: W10749269) |
|
Immediately | $ 364.16 | ||||
| 6 | W10749306 | Trim, Handle Side Door (charcoal) |
|
$ 204.61 | |||||
| 7 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.69 | ||||
| 8 | W10749275 | Trim, Top Door |
|
$ 208.48 | |||||
| 9 | W10749618 | Trim, Bottom Door |
|
$ 138.35 | |||||
| 10 | W10749614 | Trim, Hinge Side Door (charcoal) |
|
$ 216.41 | |||||
| 11 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 37.91 | |||||
| 12 | W10606813 | Insert, Door Arm (grey, Top) |
|
Immediately | $ 34.65 | ||||
| 13 | W11450414 | Bin, Shallow |
|
$ 385.52 |
