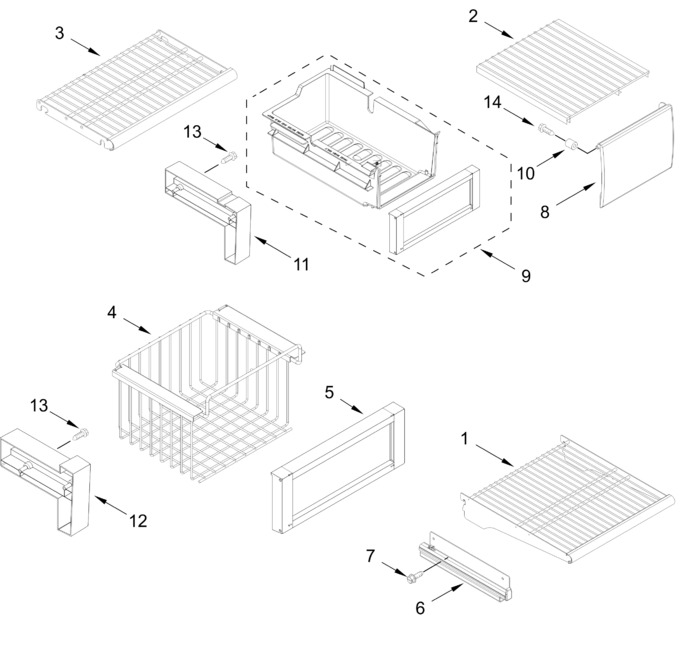

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11455935		Shelf, Wire				$ 216.11
2	W11527874		Cover, Shelf				$ 303.25
3	W11455933		Shelf, Fixed		Appelez-nous	-
4	W11690617		Basket Assembly, Freezer   (Replaces: W11452325)		Appelez-nous	-
5	W11452329		Front Assembly, Basket		Appelez-nous	-
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
8	W11764944		Door, Ice   (Replaces: W11452422)			Immediately	$ 170.01
9	W11452359		Bucket Assembly, Ice				$ 376.68
10	W10785704		Spacer, Ice Door   (Replaces: W11452423)				$ 14.52
11	W11511688		Spacer, Ice		Appelez-nous	-
12	W11630202		Spacer, Basket   (Replaces: W11511689)		Appelez-nous	-
13	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
14	W10784931		Screw (black)		Appelez-nous	-
	2259317		Slide, Basket (right Hand)				$ 233.29
