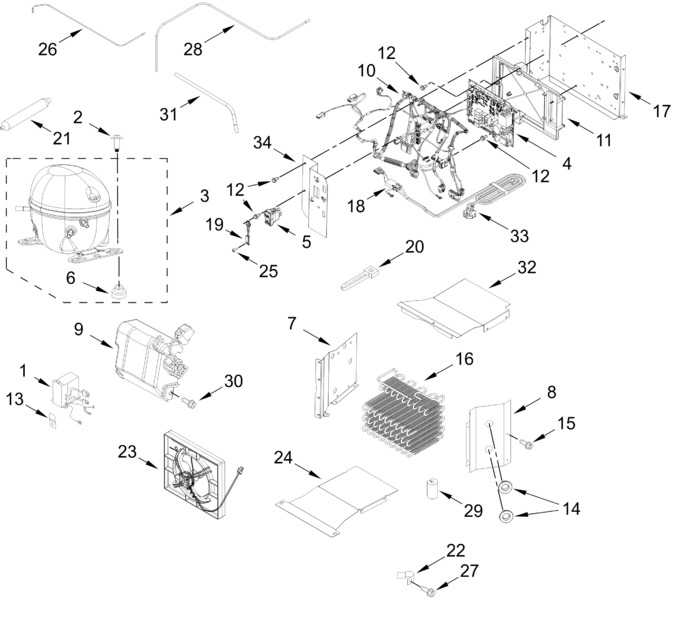

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11623097 | Box Assembly, Inverter (Replaces: W11411269) |
|
Immediately | $ 337.94 | ||||
| 2 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 3 | W11557671 | Compressor (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 4 | W11752962 | Control, Electronic (Replaces: W11683502) |
|
Immediately | $ 376.71 | ||||
| 5 | W11623128 | Switch, Power Disconnect (Replaces: W11311927) |
|
$ 125.83 | |||||
| 6 | W11661108 | Mounting Grommet, Compressor (Replaces: 2183042) |
|
$ 15.21 | |||||
| 7 | W11756945 | Support, Condenser (left Hand) (Replaces: W11695311) |
|
- | |||||
| 8 | W11756946 | Support, Condenser (right Hand) (Replaces: W11695312) |
|
- | |||||
| 9 | W11247667 | Cover Assembly, Compressor (Replaces: W11235263) |
|
$ 115.24 | |||||
| 10 | W11427211 | Wire Assembly, Unit |
|
Immediately | $ 201.21 | ||||
| 11 | W11623130 | Housing, Control Board (Replaces: W11435369) |
|
- | |||||
| 12 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 13 | 2256328 | Bracket, Inverter Mounting |
|
- | |||||
| 14 | W10587113 | Mounting Grommet, Condenser |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 16 | W11693236 | Condenser (Replaces: W11601407) |
|
$ 165.30 | |||||
| 17 | W10550831 | Housing, Control Board Mounting |
|
- | |||||
| 18 | 2310195 | Wire Assembly, Jumper (power Switch To Power Cord) |
|
$ 123.20 | |||||
| 19 | W11627456 | Sensor, Relative Humidity (Replaces: W11482040) |
|
$ 92.93 | |||||
| 20 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 23 | W11623099 | Fan Assembly, Condenser (Replaces: W11464545) |
|
$ 146.65 | |||||
| 24 | W11756954 | Bracket, Condenser Bottom (Replaces: W11695784) |
|
- | |||||
| 25 | W10068580 | Screw |
|
- | |||||
| 26 | W11735284 | Tube, Drier Transition (Replaces: W11602250) |
|
$ 59.94 | |||||
| 27 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 28 | W11777985 | Tube, Heat Loop Transition (Replaces: W11602252) |
|
- | |||||
| 29 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 30 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 31 | W11482820 | Tube, Process |
|
Immediately | $ 36.53 | ||||
| 32 | W11756951 | Cover, Condenser Support (Replaces: W11695783) |
|
- | |||||
| 33 | 2310196 | Cord, Power |
|
Immediately | $ 88.52 | ||||
| 34 | W11435371 | Bracket, Control Assembly |
|
- | |||||
| W11504416 | 8.5/6 Nr Ms 00 |
|
Immediately | $ 27.51 | |||||
| W11504415 | 8.5/8 Nr Ms 00 |
|
Immediately | $ 25.89 | |||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- | ||||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| W11504431 | 7/5 Nr Ms 00 |
|
Immediately | $ 27.13 | |||||
| ARI365422773BD6741F2B56A197441A318E | (heat Loop To Drier) |
|
- | ||||||
| W11504432 | 6/5 Nr Ms 00 |
|
Immediately | $ 25.88 | |||||
| ARI63384A48D80080E27212D2293F8FDDC2 | 79 Grams (r600a) |
|
- | ||||||
| W11504445 | 5/4 Nr Ms 00 |
|
Immediately | $ 28.92 | |||||
| ARI3031A698A6B8030D731C976AE04824C1 | (high Pressure Side To Compressor) |
|
- | ||||||
| ARIF479D1A0D17290EA712C859BF2E1C691 | (high Side To Condenser) |
|
- | ||||||
| ARI8F052732CB60E39F6CA094A8168A5109 | (process Tube To Compressor) |
|
- |
