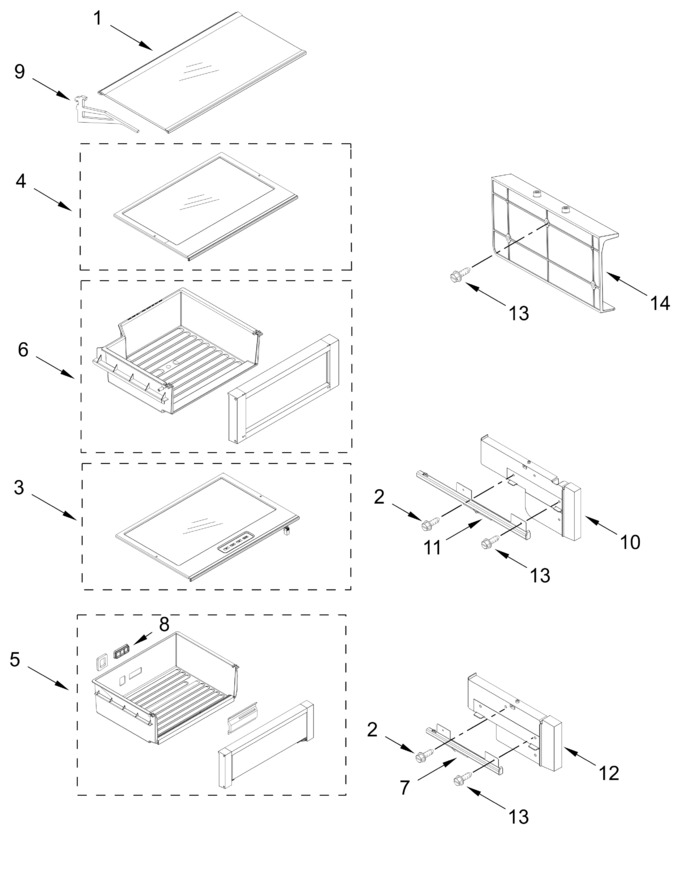

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187538		Shelf Assembly, Glass   (Replaces: W10187538)				$ 409.83
2	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
3	W11448732		Cover Assembly, Crisper				$ 440.79
4	W11630243		Cover Assembly, Meat Pan   (Replaces: W11527870)			Immediately	$ 337.73
5	W11755562		Pan Assembly, Crisper   (Replaces: W11740827)			Immediately	$ 549.75
6	W11630280		Pan Assembly, Meat   (Replaces: W11450945)				$ 421.41
7	W10844011		Slide, Meat Pan Closer (left Hand)				$ 320.20
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
10	W11451491		Spacer, Crisper		Appelez-nous	-
11	W10844010		Slide, Crisper (left Hand)			Immediately	$ 343.11
12	W11451493		Spacer, Meat		Appelez-nous	-
13	W10215666		Screw				$ 9.53
14	W11451492		Spacer, Shelf Ls		Appelez-nous	-
	W10732727		Slide, Meat Pan Closer (right Hand)			Immediately	$ 342.94
	ARIC236D3C59A55E01B8A89A671E948FF57		Right Hand		Appelez-nous	-
	ARI918EA51C669253CD37B34596C035B44C		Left Hand		Appelez-nous	-
	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11
