SELECT A DIAGRAM
New Model Search:

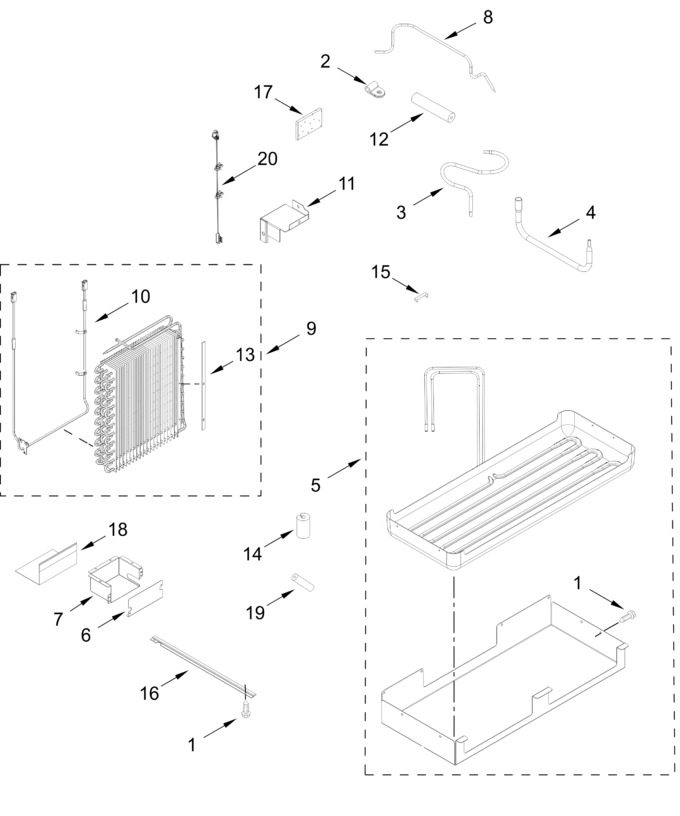

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 2 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 3 | W11444578 | Tube, Oil Trap Suction |
|
- | |||||
| 4 | W11530767 | Tube, Transition (drier/restrictor) |
|
- | |||||
| 5 | W11623101 | Pan Assembly, Drain (Replaces: W11491712) |
|
Immediately | $ 394.02 | ||||
| 6 | W11756952 | Cover, Wire Box (Replaces: W11695782) |
|
- | |||||
| 7 | W11756953 | Cover, Wiring Bottom (Replaces: W11695781) |
|
- | |||||
| 8 | W11444570 | Tube, Discharge |
|
$ 69.67 | |||||
| 9 | W11837446 | Evaporator And Heater Assembly (Replaces: W11439436) |
|
Immediately | $ 456.38 | ||||
| 10 | W11626107 | Heater, Defrost (Replaces: W11267072) |
|
Immediately | $ 227.59 | ||||
| 11 | W11756943 | Bracket, Evaporator Right Top (Replaces: W11695309) |
|
- | |||||
| 12 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 13 | W10432308 | Gasket, Evaporator |
|
- | |||||
| 14 | W11715935 | Grommet, Air Return (Replaces: W10413009) |
|
$ 13.58 | |||||
| 15 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 16 | 2320554 | Support, Drain Pan |
|
- | |||||
| 17 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 18 | W10321050 | Shelf, Wiring Cover |
|
- | |||||
| 19 | 2215648 | Dampener |
|
$ 13.21 | |||||
| 20 | W11629268 | Thermistor, Evaporator (Replaces: W11549269) |
|
Immediately | $ 34.51 | ||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- | ||||||
| W11506620 | 8 Nk Al 00 |
|
Immediately | $ 32.10 | |||||
| W11504450 | 4/1.8 Nr Ms 00 |
|
Immediately | $ 46.52 | |||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- |
