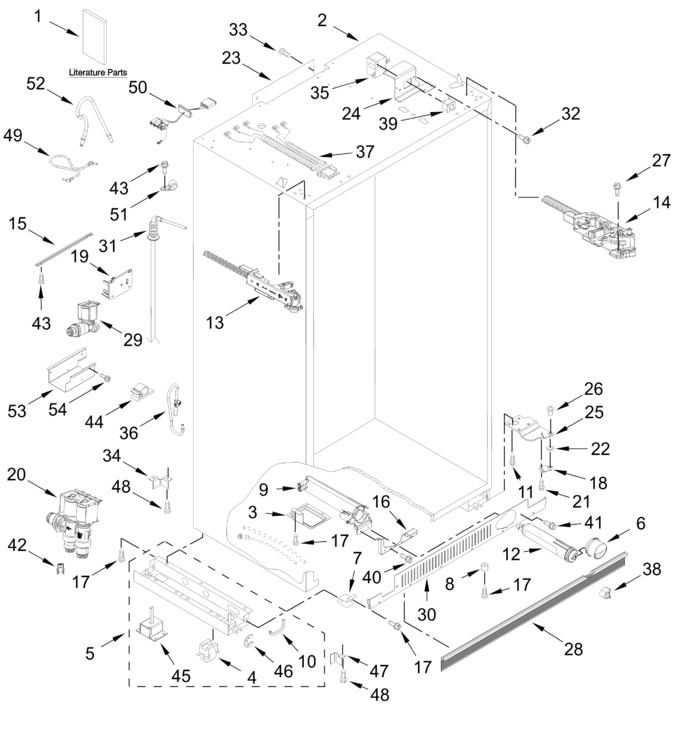

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 43.18
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 363.65
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 48.27
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 41.20
8	2005433		Spacer, Door Skin (top)				$ 23.33
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	W10121145		Filter, Water		Appelez-nous	-
13	W11791409		Hinge Assembly, Top (left Hand)   (Replaces: W11443675)		Appelez-nous	-
14	W11791410		Hinge Assembly, Top (right Hand)   (Replaces: W11443676)				$ 434.12
15	2320559		Support, Valve				$ 88.79
16	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 76.50
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 7.96
19	W11784361		Bracket, Water Valve (dual)   (Replaces: W11427343)		Appelez-nous	-
20	WPW10279866		Valve Assembly, Dual   (Replaces: W10279866)			Immediately	$ 138.28
21	W11769878		Screw   (Replaces: 3400230)				$ 12.16
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.17
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11788120		Bracket, Rocker Switch (left Hand)   (Replaces: W11780481)		Appelez-nous	-
25	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 130.70
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 86.40
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.08
28	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 237.42
29	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
30	W11739148		Grille, Bottom (black)   (Replaces: W11695788)				$ 204.37
31	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 38.98
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
33	W10678210		Screw (black)				$ 18.86
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11695310)		Appelez-nous	-
36	W11634223		Waterline   (Replaces: W11447812)			Immediately	$ 129.96
37	W10780213		Wire Assembly, Switch				$ 124.68
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
39	W11396033		Switch, Rocker   (Replaces: W10847848)			Immediately	$ 37.30
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.19
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.83
42	W10782424		Locking Ring(5/16")		Appelez-nous	-
43	W11624204		Screw   (Replaces: 486194)				$ 14.02
44	W10663352		Clip				$ 20.87
45	2005032		Leveler, Adjustable			Immediately	$ 200.07
46	2006841		Ring, Retainer				$ 92.66
47	2006616		Bracket, Support Base (left Hand, Front)				$ 91.53
48	W10784922		Screw (black)		Appelez-nous	-
49	W11663448		Tube, Water Filter   (Replaces: W11450887)				$ 55.17
50	W11421923		Harness, Water Valve				$ 166.40
51	489348		Clamp, Tube		Appelez-nous	-
52	W11634221		Tube, Water   (Replaces: W11449524)				$ 88.35
53	W11439643		Shield, Water Valve				$ 119.87
54	00487294		Screw   (Replaces: 487294)				$ 175.09
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 364.76
	W11783397		Installation Instructions		Appelez-nous	-
	W10782423		Locking Ring (1/4")				$ 23.21
	W11763025		Energy Guide		Appelez-nous	-
	W11788118		Bracket, Rocker Switch (right Hand)   (Replaces: W11780475)		Appelez-nous	-
	ARI744A39619562C01DE39E694D1CE8F7D9		(freezer)		Appelez-nous	-
	W11490758		Use And Care Guide		Appelez-nous	-
	ARIC467EA2065EBD6EE51D04A55E53CAB77		(refrigerator)		Appelez-nous	-
	W11494196		Tech Sheet		Appelez-nous	-
	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 285.08
	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
	2006556		Bracket, Support Base (right Hand, Front)				$ 37.20
