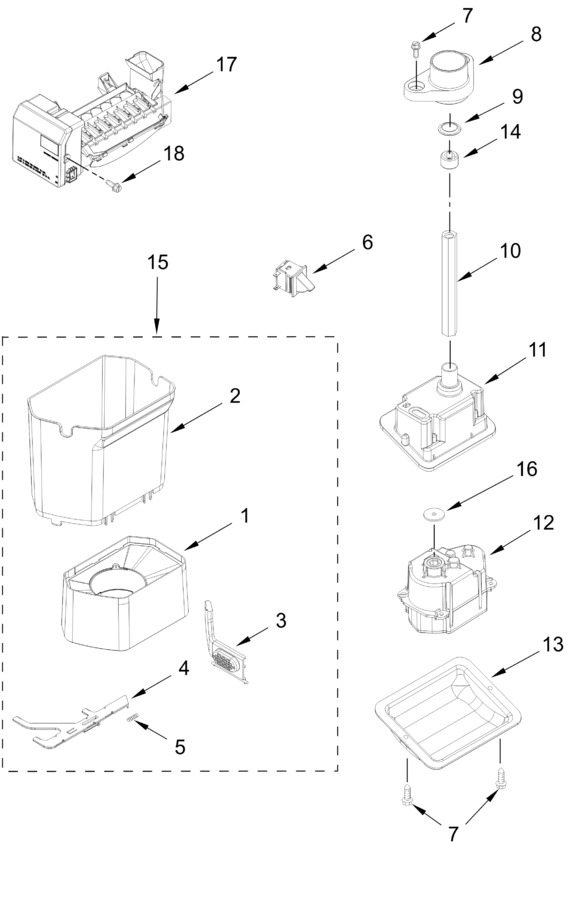

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11452366 | Bin, Crusher |
|
$ 376.02 | |||||
| 2 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 262.66 | ||||
| 3 | W11455248 | Button, Bin |
|
$ 150.38 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 110.96 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 6 | W11592420 | Switch, Auger Motor |
|
$ 48.16 | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | W10785288 | Clip, Shaft |
|
$ 13.40 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 115.26 | ||||
| 11 | W11461791 | Enclosure, Motor |
|
- | |||||
| 12 | W10822606 | Motor, Dispenser (Replaces: W11185741) |
|
Immediately | $ 156.54 | ||||
| 13 | W11459587 | Cover, Dispenser Motor |
|
$ 48.63 | |||||
| 14 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
Immediately | $ 85.41 | ||||
| 15 | W11452364 | Assembly, Ice Container |
|
$ 725.18 | |||||
| 16 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 10.61 | ||||
| 17 | W11737191 | Icemaker Assembly (complete) (Replaces: W11548784) |
|
$ 427.96 | |||||
| 18 | W10678210 | Screw (black) |
|
$ 19.80 |
