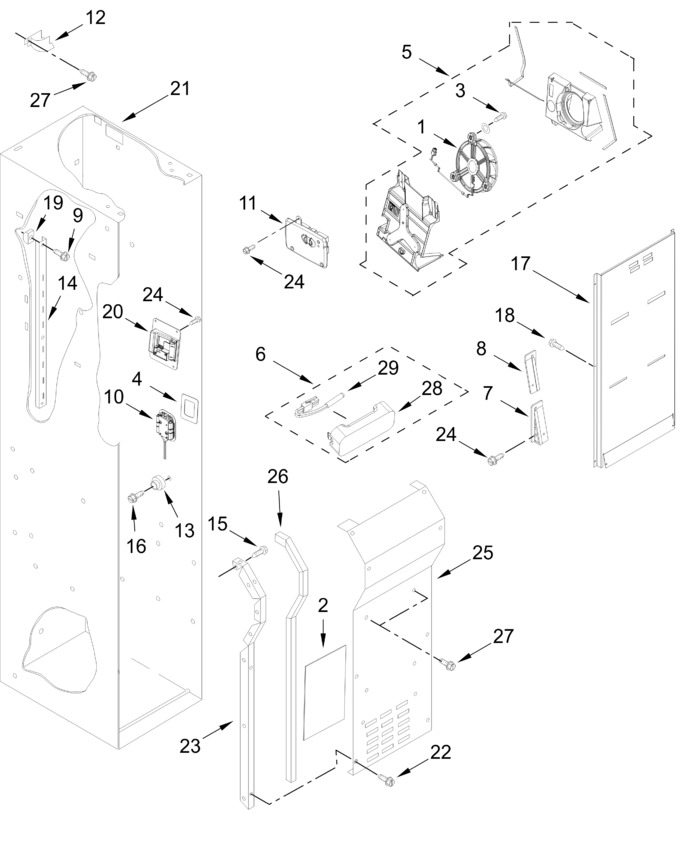

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618271		Fan, Evaporator   (Replaces: W11544700)			Immediately	$ 232.03
2	W11791407		Gasket, Fc Evaporator Bypass   (Replaces: W11678120)		Appelez-nous	-
3	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
4	W10672548		Shim, Led				$ 21.11
5	W11631626		Fan Assembly, Evaporator   (Replaces: W11437867)			Immediately	$ 275.87
6	W11759117		Thermistor Assembly   (Replaces: W11550867)			Immediately	$ 45.05
7	W10769280		Wedge, Air Duct (left Hand)		Appelez-nous	-
8	W10769279		Wedge, Air Duct (right Hand)		Appelez-nous	-
9	W10678207		Screw   (Replaces: W10832438)				$ 16.43
10	W11484836		Light Module, Led   (Replaces: W11229041)			Immediately	$ 27.01
11	W11737647		Control Board, Receiver   (Replaces: W11685704)				$ 301.05
12	W10775705		Guard, Air Return		Appelez-nous	-
13	W10789219		Stud Assembly, Shelf (gray, Includes Screw)				$ 25.43
14	W11481486		Ladder, Shelf		Appelez-nous	-
15	W11624204		Screw   (Replaces: 486194)				$ 14.72
16	W10784949		Screw (black)				$ 11.41
17	W11469467		Duct, Air				$ 94.57
18	W10784922		Screw (black)		Appelez-nous	-
19	520965		Support, Ladder				$ 31.35
20	W11751969		Control Board, Emitter   (Replaces: W11685705)				$ 304.92
21	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
22	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
23	W11756941		Rail, Evaporator Cover (left Hand)   (Replaces: W11695307)		Appelez-nous	-
24	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
25	W11460632		Cover, Evaporator		Appelez-nous	-
26	W11467832		Gasket, Evaporator Cover				$ 26.94
27	W10678210		Screw (black)				$ 19.80
28	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
29	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
	W11756942		Rail, Evaporator Cover (right Hand)   (Replaces: W11695308)		Appelez-nous	-
