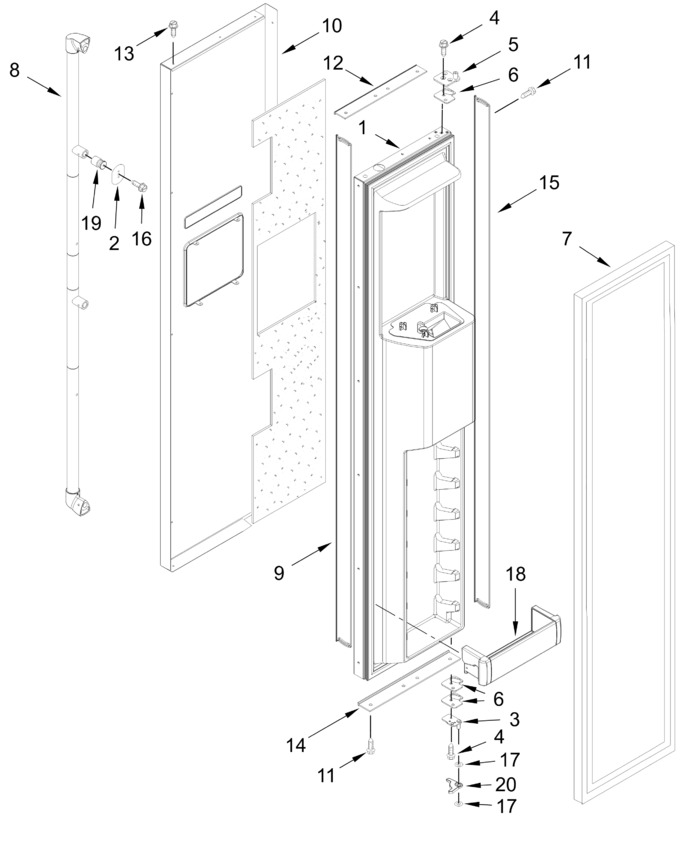

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633128		Door, Freezer   (Replaces: W11502204)				$ 1,887.06
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 108.07
7	W10800818		Gasket, Door (black)   (Replaces: W10749269)			Immediately	$ 382.37
8	W11358123		Handle, Door (stainless)		Appelez-nous	-
9	W10758377		Spacer, Handle Side Door				$ 109.79
10	W11633384		Skin, Fc Door (stainless)   (Replaces: W11441146)				$ 1,528.56
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	W10758114		Spacer, Door (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10766559		Spacer, Door (bottom)		Appelez-nous	-
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W11450414		Bin, Shallow				$ 404.80
19	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 12.80
20	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 11.76
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
