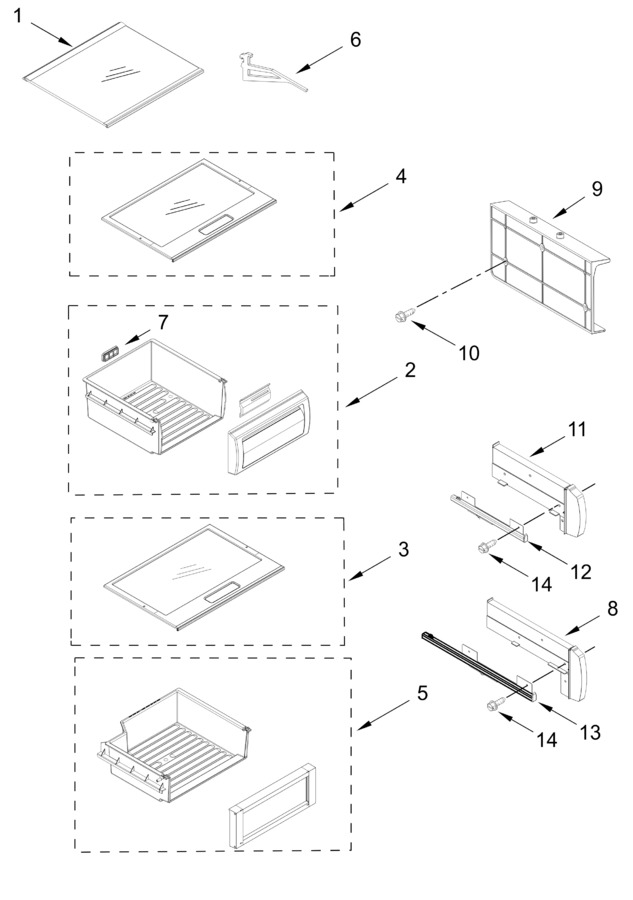

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777987		Shelf Assembly   (Replaces: W11654571)		Appelez-nous	-
2	W11755562		Pan Assembly, Crisper   (Replaces: W11740827)			Immediately	$ 549.75
3	W11630243		Cover Assembly, Meat Pan   (Replaces: W11527870)			Immediately	$ 337.73
4	W11630595		Cover Assembly, Crisper   (Replaces: W11527872)				$ 327.05
5	W11630280		Pan Assembly, Meat   (Replaces: W11450945)				$ 421.41
6	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
7	2307810		Duct, Deli Pan		Appelez-nous	-
8	W11451491		Spacer, Crisper		Appelez-nous	-
9	W11451492		Spacer, Shelf Ls		Appelez-nous	-
10	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
11	W11451493		Spacer, Meat		Appelez-nous	-
12	W10844011		Slide, Meat Pan Closer (left Hand)				$ 320.20
13	W10844010		Slide, Crisper (left Hand)			Immediately	$ 343.11
14	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11
	W10732727		Slide, Meat Pan Closer (right Hand)			Immediately	$ 342.94
