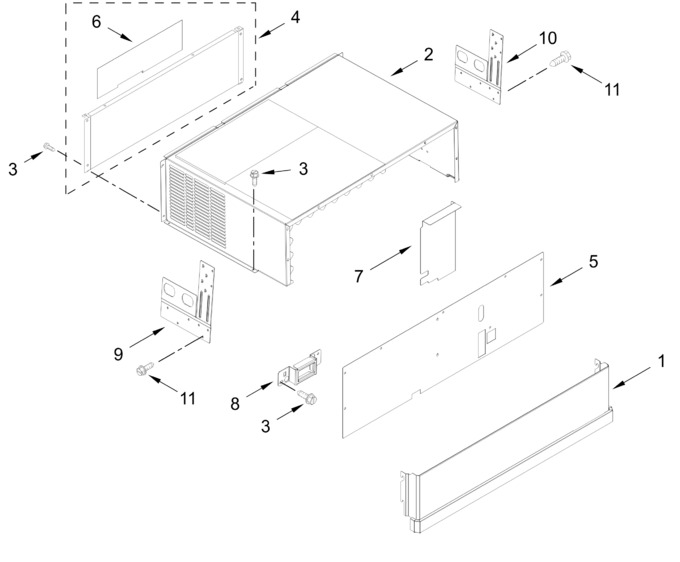

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788122		Grille Assembly, Top (stainless)   (Replaces: W11737853)			Immediately	$ 1,204.42
2	W11735285		Cover, Upper Unit   (Replaces: W11708444)			Immediately	$ 205.97
3	W10784922		Screw (black)		Appelez-nous	-
4	W11729400		Panel, Unit Back   (Replaces: W11708420)		Appelez-nous	-
5	W11435372		Cover, Unit Front			Immediately	$ 47.65
6	W11244166		Insulation, Unit Back Panel				$ 78.99
7	W10645086		Divider, Unit Air				$ 102.80
8	W11356980		Cover, Safety Switch		Appelez-nous	-
9	W11777557		Bracket, Install (left)   (Replaces: W11756499)		Appelez-nous	-
10	W11777558		Bracket, Install (right)   (Replaces: W11756500)				$ 135.29
11	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
