SELECT A DIAGRAM
New Model Search:

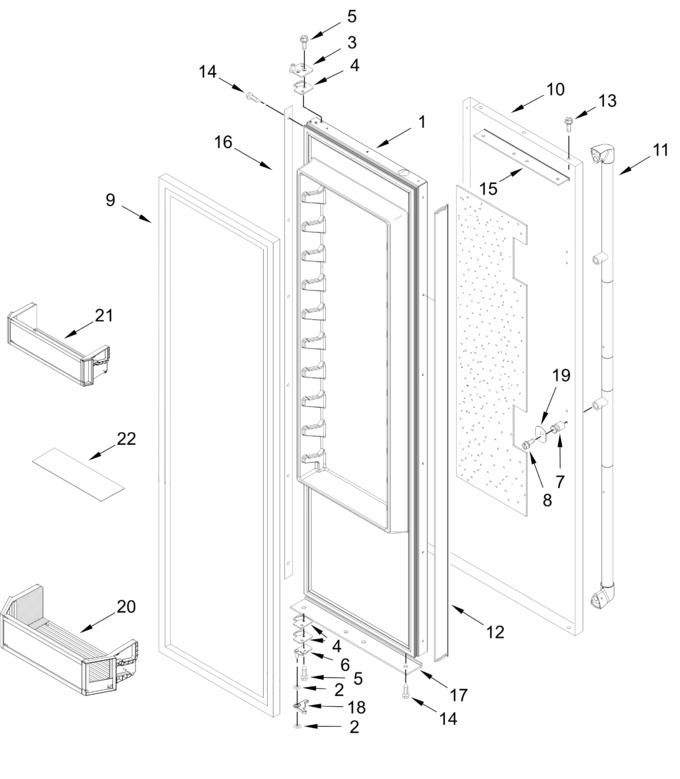

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11797637 | Door, Refrigerator (Replaces: W10783291) |
|
$ 884.49 | |||||
| 2 | WP2006346 | Washer, Door Bearing (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 3 | W11673500 | Hinge Assembly, Top (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 91.01 | ||||
| 7 | W11631830 | Stud, Handle Mounting (Replaces: W11564087) |
|
$ 12.80 | |||||
| 8 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 9 | W10800810 | Gasket, Door (black) (Replaces: W10776012) |
|
Immediately | $ 352.36 | ||||
| 10 | W11797605 | Skin, Rc Door (stainless) (Replaces: W10756459) |
|
$ 1,508.86 | |||||
| 11 | W11358123 | Handle, Door (stainless) |
|
- | |||||
| 12 | W10758377 | Spacer, Handle Side Door |
|
$ 109.79 | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | W11748041 | Screw (stainless) (Replaces: W11672062) |
|
- | |||||
| 15 | W10766560 | Spacer, Door (top) |
|
- | |||||
| 16 | W10758378 | Spacer, Hinge Side Door |
|
- | |||||
| 17 | W10766561 | Spacer, Door (bottom) |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 19 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 20 | W11450421 | Bin, Gallon Door |
|
Immediately | $ 418.92 | ||||
| 21 | W11450407 | Bin, Shallow Door |
|
Immediately | $ 410.93 | ||||
| 22 | W11454936 | Mat, Door Bin (gallon) (Replaces: W11454932) |
|
- | |||||
| W11454936 | Mat, Door Bin (shallow) (Replaces: W11454934) |
|
- | ||||||
| ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351 | Filler (not Serviced-included With Skin) |
|
- |
