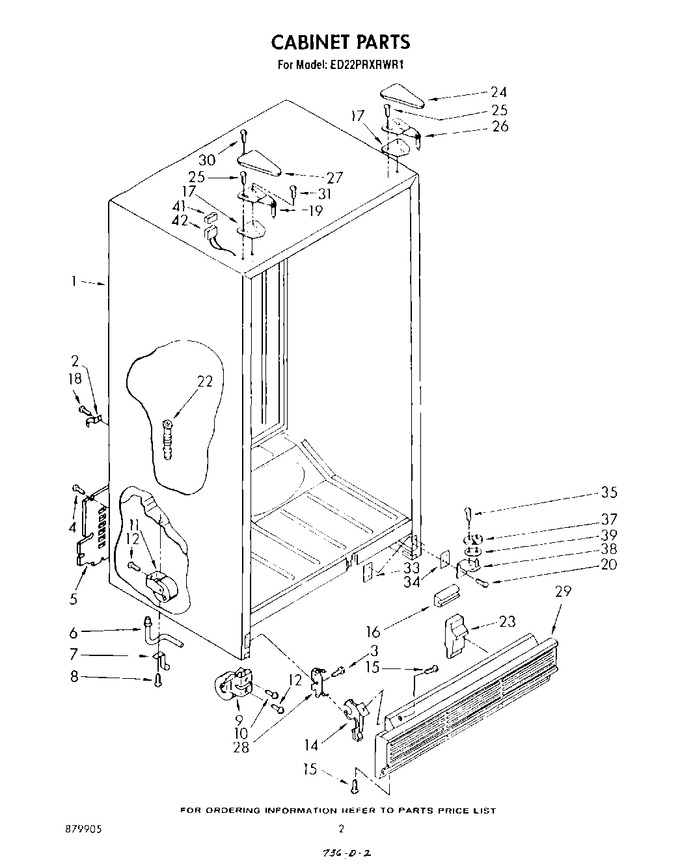

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 836472 | Clamp, Tube (2) |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.67 | |||||
| 5 | 850457 | Cover, Unit Compartment |
|
- | |||||
| 6 | 841646 | Extension Fitting |
|
- | |||||
| 7 | 841648 | Clip, Drain |
|
- | |||||
| 8 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 9 | 981127 | Roller, Front (2) |
|
- | |||||
| 10 | 488681 | Screw, Adjusting |
|
- | |||||
| 11 | WPW10250570 | Roller Assembly, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 12 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 14 | WP944224 | Grille Support (2) (Replaces: 944224) |
|
$ 7.56 | |||||
| 15 | 489173 | Screw, (4) |
|
- | |||||
| 16 | 546131 | Bumper |
|
- | |||||
| 17 | 836192 | Shim, Hinge |
|
- | |||||
| 18 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 19 | 983608 | Hinge, Top |
|
- | |||||
| 20 | 00489194 | Screw, 10-32 X 23/32 (Replaces: 489194) |
|
$ 255.17 | |||||
| 22 | 836068 | Drain Fitting, Liner |
|
- | |||||
| 23 | 836372 | Air, Baffle |
|
- | |||||
| 24 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 24 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 24 | 989896 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 24 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 25 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.86 | |||||
| 25 | 488949 | Screw (repair) 12-14 X 3/4 |
|
- | |||||
| 26 | 842039 | Hinge, Top |
|
- | |||||
| 27 | 989887 | Cover, Hinge (almond) |
|
- | |||||
| 27 | 1100381 | Cover, Hinge (toast) |
|
- | |||||
| 27 | 987191 | Cover, Hinge (white) |
|
- | |||||
| 27 | 989885 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 28 | 989068 | Clip, Grille (2) |
|
- | |||||
| 29 | 1106236 | Grille |
|
- | |||||
| 30 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 31 | WP488234 | Screw, 8-32 X 5/32 (Replaces: 488889) |
|
$ 6.74 | |||||
| 33 | 836162 | Plate, Tap (2) |
|
- | |||||
| 34 | 836196 | Shim, Bottom Hinge (.030) |
|
- | |||||
| 35 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.34 | |||||
| 35 | 488913 | Screw (repair) |
|
- | |||||
| 37 | WPW10329686 | Door Closer (Replaces: 1115901) |
|
Immediately | $ 5.43 | ||||
| 38 | 1115900 | Hinge, Bottom R.h. |
|
- | |||||
| 38 | 1115903 | Hinge, Bottom (l.h.) |
|
- | |||||
| 39 | 987179 | Shim, Door Closer |
|
- | |||||
| 41 | 851648 | Receptacle, Head |
|
- | |||||
| 42 | 482553 | Harness, Wiring 6`` Leads (includes Illus. 41) |
|
- |
