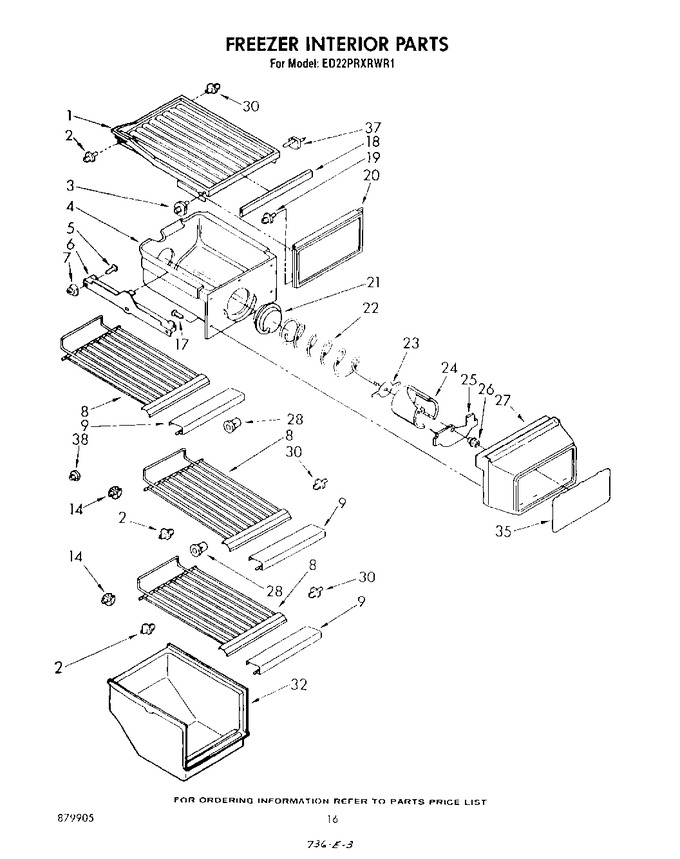

09 - Freezer Interior


10 - Refrigerator Interior , Lit/optional


11 - Ice Maker


12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	938551		Shelf, Solid		Appelez-nous	-
2	521878		Stud, Shelf (6)		Appelez-nous	-
3	536410		Stud, Shelf		Appelez-nous	-
4	938568		Ice Container		Appelez-nous	-
5	487979		Screw, 8 X 1 (4)		Appelez-nous	-
6	982321		Slide, Freezer Bin (4)		Appelez-nous	-
7	842339		Grommet		Appelez-nous	-
8	986975		Shelf, Ice Pan		Appelez-nous	-
9	1119753		Trim, Shelf		Appelez-nous	-
14	210518		Stud, Support (3)		Appelez-nous	-
17	WP488787		Screw, 8-18 X 1/2 (5)   (Replaces: 488886)				$ 11.26
18	938552		Trim, Shelf		Appelez-nous	-
19	521516		Stud, Ice Door Stop		Appelez-nous	-
20	1108783		Front, Ice Compartment		Appelez-nous	-
21	W10749708		Coupling, Ice Conveyor   (Replaces: 983668)				$ 27.44
22	946191		Conveyor, Ice Dispenser		Appelez-nous	-
23	4388736		Drive Bar   (Replaces: 946192)				$ 96.97
24	4388736		Drum, Ice Dispenser   (Replaces: 946193)				$ 96.97
25	946194		Baffle		Appelez-nous	-
26	946195		Nut, Bearing		Appelez-nous	-
27	1101992		Cover, Ice Container		Appelez-nous	-
28	533881		Grommet (3)		Appelez-nous	-
30	937513		Stud, Shelf (6)		Appelez-nous	-
32	1119754		Bin, Freezer		Appelez-nous	-
35	938571		Overlay, Cover		Appelez-nous	-
37	991924		Stud, Shelf		Appelez-nous	-
38	512900		Stud, Retainer		Appelez-nous	-
