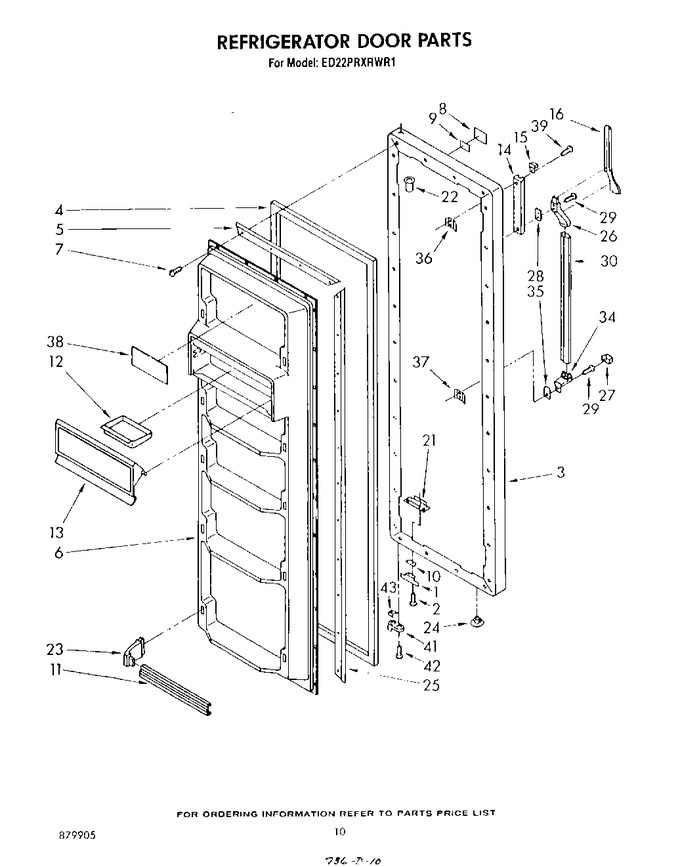

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115906		Bracket, Door Stop		Appelez-nous	-
2	488930		Screw (repair)		Appelez-nous	-
2	488549		Screw, 8 X 5/8		Appelez-nous	-
3	1119742		Door, Refrigerator (white)		Appelez-nous	-
3	1119743		Door, Refrigerator (golden Harvest)		Appelez-nous	-
3	1119744		Door, Refrigerator (almond)		Appelez-nous	-
3	1119745		Door, Refrigerator (toast)		Appelez-nous	-
4	2188404A		Gasket, Refrigerator Door   (Replaces: 939565)				$ 269.26
5	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
6	1104203		Panel, Interior		Appelez-nous	-
7	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
7	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 7.85
8	1116206		Nameplate		Appelez-nous	-
9	991259		Tape Strip		Appelez-nous	-
10	988421		Shim, Bracket		Appelez-nous	-
11	1108918		Trim, Door Shelf (5)		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	1111889		Door, Compartment		Appelez-nous	-
14	941954		Retainer Insert		Appelez-nous	-
15	941259		End Cap		Appelez-nous	-
16	1119701		Insert Handle (golden Harvest)		Appelez-nous	-
16	1119700		Insert Handle (white)		Appelez-nous	-
16	1119702		Insert Handle (almond)		Appelez-nous	-
16	1119703		Insert Handle (toast)		Appelez-nous	-
21	988402		Tap Plate		Appelez-nous	-
22	509929		Cap, Hinge Sleeve		Appelez-nous	-
23	WP849996		Support, Door Trim (10)   (Replaces: 849996)				$ 7.57
24	534927		Plug, Hole		Appelez-nous	-
25	836120		Retainer, Side (2)		Appelez-nous	-
26	935103		Cap, Handle		Appelez-nous	-
27	987873		Cover, End Cap		Appelez-nous	-
28	935075		Shim, Handle		Appelez-nous	-
29	WPW10141645		Screw, 8 X 1/2 (3)   (Replaces: 489084)				$ 7.67
30	1119757		Handle, Center		Appelez-nous	-
34	935105		Cap, Handle				$ 32.80
35	935076		Shim, Handle		Appelez-nous	-
36	941242		Screw Anchor		Appelez-nous	-
37	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
38	LIT1119767		Label, Use & Care Guide		Appelez-nous	-
39	489075		Screw, 10-32 X 5/8		Appelez-nous	-
41	4318165		Door Closer   (Replaces: 1115905)			Immediately	$ 27.36
42	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
43	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
