SELECT A DIAGRAM

02 - Cabinet


03 - Breaker Trim And Liner


04 - Air Flow


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Freezer Interior


10 - Refrigerator Interior , Lit/optional


11 - Ice Maker

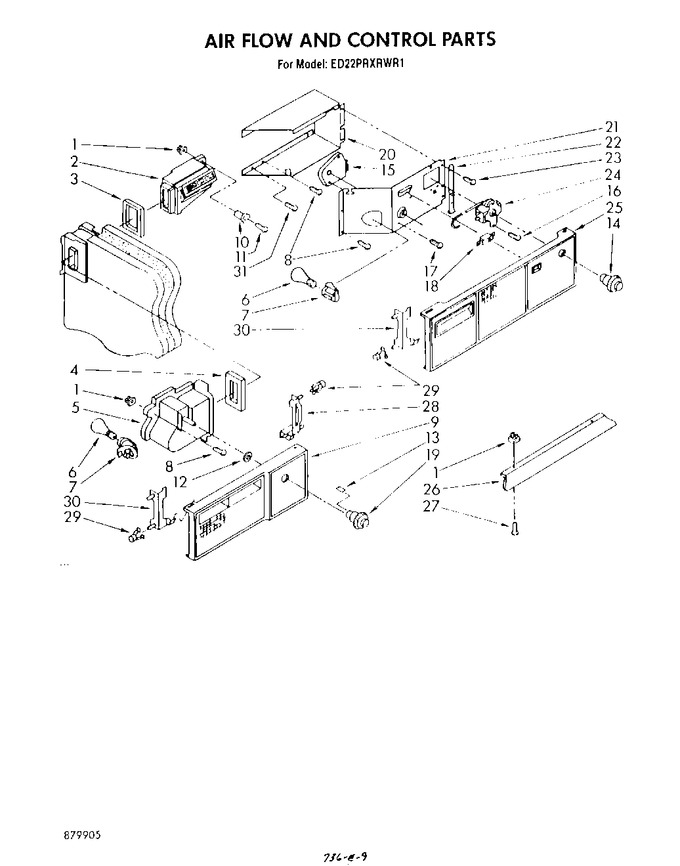

12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	946145		Air Diffuser Assembly		Appelez-nous	-
3	842394		Gasket Diffuser		Appelez-nous	-
4	844871		Gasket Scoop		Appelez-nous	-
5	841269		Air Scoop (includes Illus. 4)		Appelez-nous	-
6	8009		Bulb   (Replaces: 527949)			Immediately	$ 18.67
7	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	985456		Lens, Light		Appelez-nous	-
10	836667		Spacer		Appelez-nous	-
11	488357		Screw, 8 X 1/4		Appelez-nous	-
12	938439		Retainer, Damper		Appelez-nous	-
13	837444		Knob, Retainer		Appelez-nous	-
14	836482		Knob, Temperature		Appelez-nous	-
15	W10822278		Timer, Defrost (10 Hour)   (Replaces: 943435)			Immediately	$ 34.44
16	WP489128		Screw, 8-32 X 3/8 (4)   (Replaces: 488500)				$ 11.40
17	WP3388228		Screw, 6-20 X 3/8 (2)   (Replaces: 488911)				$ 7.30
18	938049		Switch, Lighted		Appelez-nous	-
19	837445		Switch, Knob (includes Illus. 13)		Appelez-nous	-
20	984550		Box, Control		Appelez-nous	-
21	934045		Cover, Control Box		Appelez-nous	-
22	984552		Support, Light Lens (r.s.)		Appelez-nous	-
23	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
24	WP4317800		Thermostat & Barrier   (Replaces: 946644)			Immediately	$ 278.68
25	943218		Lens, Light		Appelez-nous	-
26	836216		Baffle, Liner		Appelez-nous	-
27	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
28	842355		Support, Light Lens (r.s.)		Appelez-nous	-
29	843945		Clip, Tubular (6)		Appelez-nous	-
30	842356		Support, Light Lens (l.s.) (2)		Appelez-nous	-
31	488474		Screw, 8-32 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
