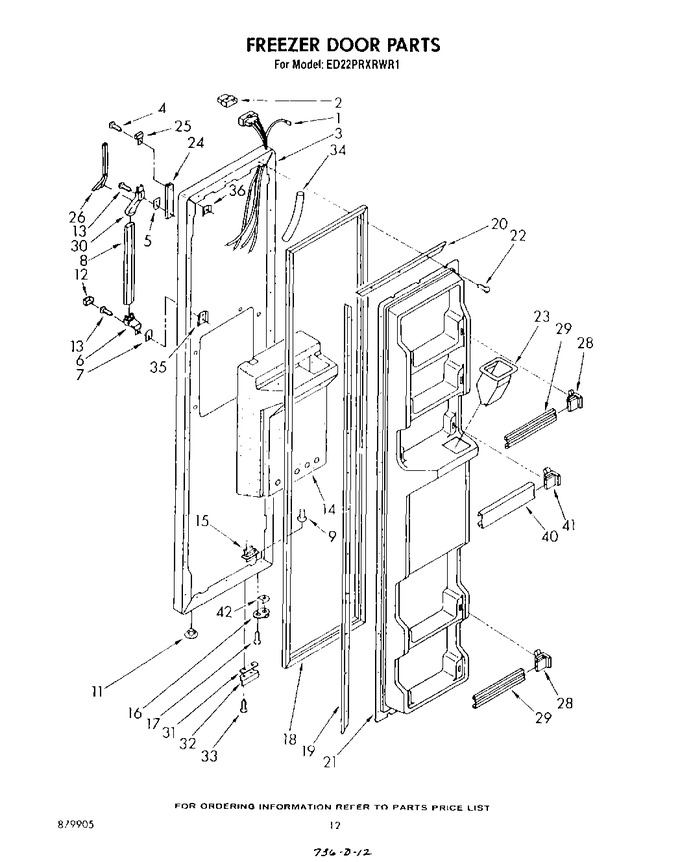

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1108248 | Harness, Door (includes Illus. 2) |
|
- | |||||
| 2 | 851649 | Connector, Plug |
|
- | |||||
| 3 | 1119761 | Door, Freezer (golden Harvest) |
|
- | |||||
| 3 | 1119760 | Door, Freezer (white) |
|
- | |||||
| 3 | 1119762 | Door, Freezer (almond) |
|
- | |||||
| 3 | 1119763 | Door, Freezer (toast) |
|
- | |||||
| 4 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 5 | 935075 | Shim, Handle |
|
- | |||||
| 6 | 935103 | Cap, Handle |
|
- | |||||
| 7 | 935076 | Shim, Handle |
|
- | |||||
| 8 | 1120523 | Handle, Center |
|
- | |||||
| 9 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 11 | 534927 | Plug, Hole |
|
- | |||||
| 12 | 987873 | Cover, End Cap |
|
- | |||||
| 13 | WPW10141645 | Screw, 8 X 1/2 (3) (Replaces: 489084) |
|
$ 7.67 | |||||
| 14 | 1109480 | Insulation, Dispenser |
|
- | |||||
| 15 | 988402 | Tap Plate |
|
- | |||||
| 16 | 4318165 | Door Closer (Replaces: 1115905) |
|
Immediately | $ 27.36 | ||||
| 17 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 18 | 2188405A | Gasket, Freezer Door (Replaces: 939566) |
|
$ 351.08 | |||||
| 19 | 836120 | Retainer, Side (2) |
|
- | |||||
| 20 | 836122 | Retainer, Top & Bottom (2) |
|
- | |||||
| 21 | 1101396 | Panel, Interior |
|
- | |||||
| 22 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 22 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 23 | 1109488 | Chute, Ice |
|
- | |||||
| 24 | 941954 | Retainer Insert |
|
- | |||||
| 25 | 941259 | End Cap |
|
- | |||||
| 26 | 1119703 | Insert Handle (toast) |
|
- | |||||
| 26 | 1119700 | Insert Handle (white) |
|
- | |||||
| 26 | 1119701 | Insert Handle (golden Harvest) |
|
- | |||||
| 26 | 1119702 | Insert Handle (almond) |
|
- | |||||
| 28 | 839904 | Retainer, Shelf Trim (8) |
|
$ 5.65 | |||||
| 29 | 1108804 | Shelf, Trim (4) |
|
- | |||||
| 30 | 935103 | Cap, Handle (top) |
|
- | |||||
| 31 | 988421 | Shim |
|
- | |||||
| 32 | 1115906 | Bracket, Door Stop |
|
- | |||||
| 33 | 488930 | Screw (repair) |
|
- | |||||
| 33 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 34 | 991415 | Tube, Door Wiring |
|
- | |||||
| 35 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 36 | 941242 | Screw Anchor |
|
- | |||||
| 40 | 939773 | Shelf Trim |
|
- | |||||
| 41 | 839975 | Retainer, Shelf Trim (2) |
|
$ 5.84 | |||||
| 42 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 |
