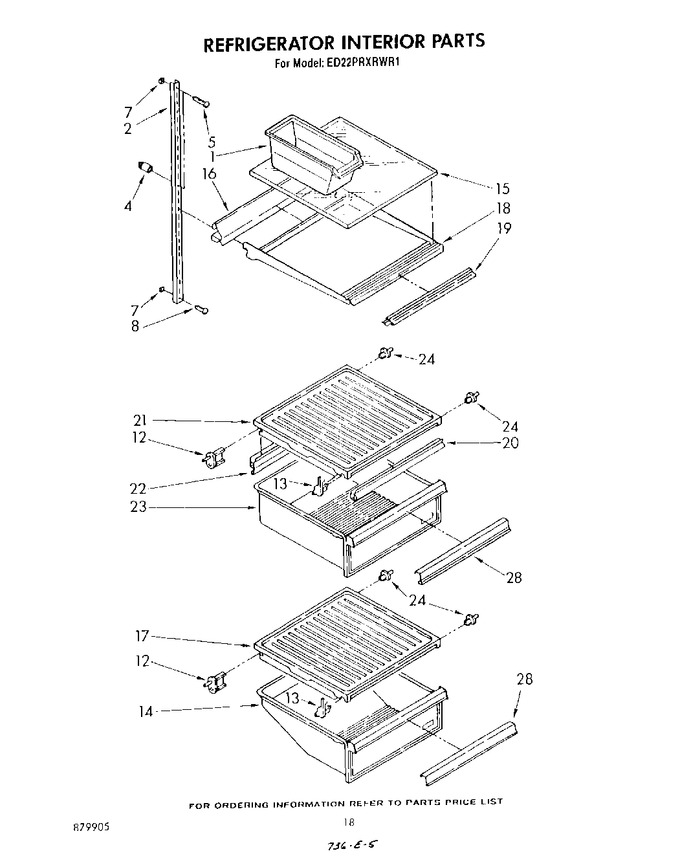

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP982704 | Container (Replaces: 1108734) |
|
$ 32.55 | |||||
| 2 | 937665 | Ladder, Shelf (2) |
|
- | |||||
| 4 | 512923 | Grommet (4) |
|
- | |||||
| 5 | 488357 | Screw, 8 X 1-1/4 (4) |
|
- | |||||
| 7 | 520965 | Support, Ladder (2) |
|
$ 31.35 | |||||
| 8 | 489023 | Screw (repair) |
|
- | |||||
| 8 | 488960 | Screw, 8-32 X 1-1/4 (2) |
|
- | |||||
| 12 | 937515 | Stud, Pan Cover (2) |
|
- | |||||
| 13 | 984779 | Stud, Pan Cover (2) |
|
- | |||||
| 14 | 1111881 | Pan, Meat |
|
- | |||||
| 15 | 1120619 | Glass, Shelf |
|
- | |||||
| 16 | 849028 | Reflector, Shelf |
|
- | |||||
| 17 | 1110034 | Pan Slide & Cover |
|
- | |||||
| 18 | 1120580 | Shelf, Cantilever (3) |
|
- | |||||
| 19 | 1120620 | Trim, Shelf |
|
- | |||||
| 20 | 987419 | Crisper Gasket Front |
|
- | |||||
| 21 | 1119749 | Pan Slide & Cover |
|
- | |||||
| 22 | 987420 | Crisper Gasket Rear |
|
- | |||||
| 23 | 1111883 | Pan, Crisper |
|
- | |||||
| 24 | 208500 | Stud, Shelf (4) |
|
- | |||||
| 28 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 28 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 28 | 988255 | Overlay |
|
- | |||||
| 28 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 28 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 28 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 28 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 28 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 28 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 28 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 28 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 28 | 799908 | Silicone (spray) |
|
- | |||||
| 28 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 28 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 28 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 28 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 28 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 28 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 28 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 28 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 28 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 28 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 28 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | ||||||
| LIT879905 | Parts List |
|
- | ||||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- | ||||||
| LIT628107 | Modular Icemaker Service Sheet |
|
- | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | ||||||
| LIT1118694 | Service & Wiring Sheet |
|
- | ||||||
| LIT1119769 | Energy Guide |
|
- | ||||||
| 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | ||||||
| 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 |
