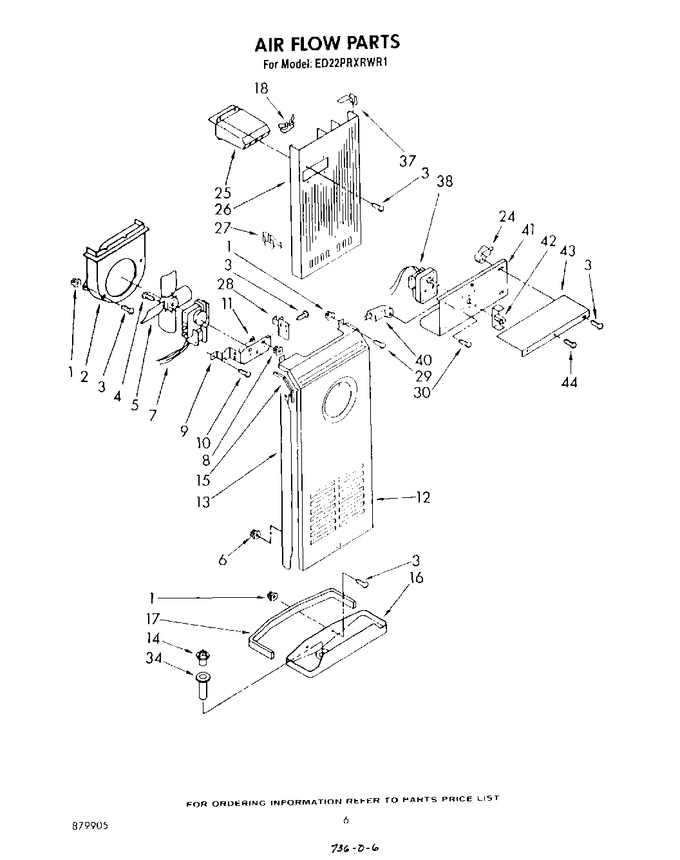

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	1111212		Scroll Fan		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
4	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
5	992920		Blade, Fan				$ 39.91
6	981616		Screw, Grommet		Appelez-nous	-
7	SM999		Motor, Fan   (Replaces: 938124)			Immediately	$ 30.26
8	538449		Grommet (2)		Appelez-nous	-
9	938224		Bracket (single)		Appelez-nous	-
10	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
11	548268		Grommet (3)		Appelez-nous	-
12	1111213		Cover, Evaporator		Appelez-nous	-
13	939674		Gasket (2)		Appelez-nous	-
14	842259		Cap, Drain		Appelez-nous	-
15	987178		Gasket, Evaporator Cover (top) (2)		Appelez-nous	-
16	842404		Pan, Drain		Appelez-nous	-
17	845564		Gasket, Drain		Appelez-nous	-
18	1118625		Clip, Air Deflector		Appelez-nous	-
24	992720		Stud Support (2)		Appelez-nous	-
25	983652		Deflector, Air		Appelez-nous	-
26	938591		Duct, Air		Appelez-nous	-
27	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
28	548263		Bracket (double)		Appelez-nous	-
29	WP488729		Screw (7)   (Replaces: 489196)			Immediately	$ 7.79
30	303776		Screw, 8-32 X 5/16 (4)   (Replaces: 488906)		Appelez-nous	-
34	841770		Fitting, Drain		Appelez-nous	-
37	946697		Baffle, Air		Appelez-nous	-
38	851152		Motor, Dispenser		Appelez-nous	-
40	983660		Stud Support (2)		Appelez-nous	-
41	1109498		Bracket, Dispenser Motor		Appelez-nous	-
42	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 23.34
43	938533		Cover, Ice Dispenser		Appelez-nous	-
44	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
