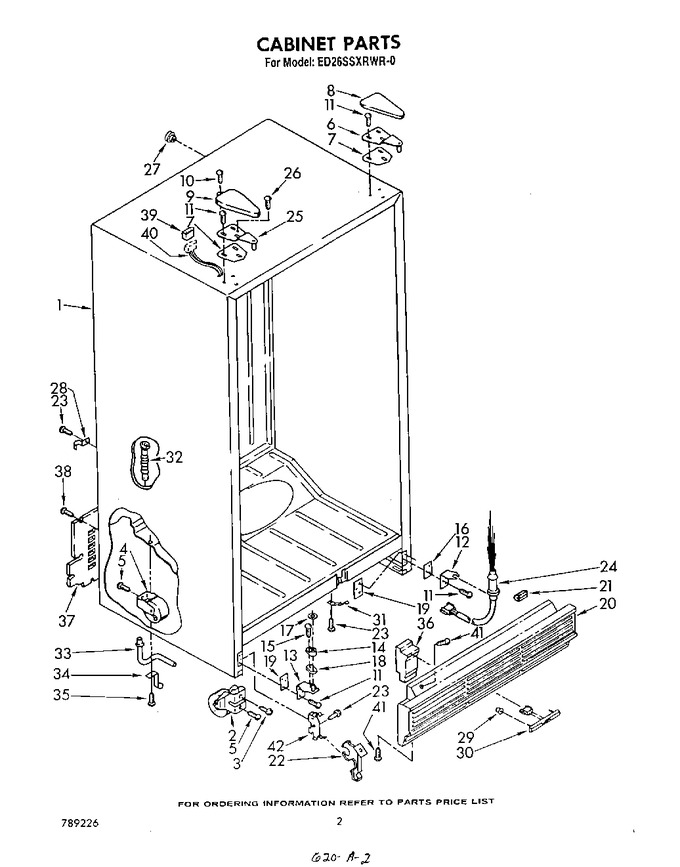

| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 981127 | Roller, Front |
|
- | |||||
| 3 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 6 | 935041 | Hinge (top) |
|
- | |||||
| 7 | 992854 | Hinge Shim (top) |
|
- | |||||
| 8 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 8 | 842010 | Hinge Cover (white) |
|
- | |||||
| 8 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 8 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 8 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 9 | 1100381 | Hinge Cover (freezer) (toast) |
|
- | |||||
| 9 | 987191 | Hinge Cover (freezer) (white) |
|
- | |||||
| 9 | 989885 | Hinge Cover (freezer) (golden Harvest) |
|
- | |||||
| 9 | 989887 | Hinge Cover (freezer) (almond) |
|
- | |||||
| 9 | 1100382 | Hinge Cover (freezer) (platinum) |
|
- | |||||
| 10 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 11 | 488949 | Screw (repair) |
|
- | |||||
| 11 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 12 | 939152 | Hinge, Bottom |
|
- | |||||
| 13 | 986764 | Hinge Bottom (l.h) |
|
- | |||||
| 14 | WPW10329686 | Door Closer (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 15 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.89 | |||||
| 15 | 488913 | Screw (repair) |
|
- | |||||
| 16 | 836196 | Shim, Bottom Hinge |
|
- | |||||
| 17 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 18 | 987179 | Shim, Door Closer |
|
- | |||||
| 19 | 836162 | Tap Plate, Hinge |
|
- | |||||
| 20 | 944275 | Exterior, Grille (white) |
|
- | |||||
| 20 | 944277 | Exterior, Grille (golden Harvest) |
|
- | |||||
| 20 | 944279 | Exterior, Grille (almond) |
|
- | |||||
| 20 | 1101463 | Exterior, Grille (toast) |
|
- | |||||
| 20 | 1101464 | Exterior, Grille (platinum) |
|
- | |||||
| 21 | 546131 | Bumper, Grille |
|
- | |||||
| 22 | WP944224 | Grille Support (Replaces: 944224) |
|
$ 7.94 | |||||
| 23 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 24 | 943521 | Wiring Assembly Door |
|
- | |||||
| 25 | 983608 | Hinge, Top Freezer |
|
- | |||||
| 26 | WP488234 | Screw, 8-32 X 5/32 (Replaces: 488889) |
|
$ 7.08 | |||||
| 27 | 839989 | Grommet |
|
- | |||||
| 28 | 836472 | Tube, Clamp |
|
- | |||||
| 29 | 936571 | Stud Anchor |
|
- | |||||
| 30 | 943570 | Door Sensor, Escutcheon (golden Harvest) |
|
- | |||||
| 30 | 943572 | Door Sensor, Escutcheon (almond) |
|
- | |||||
| 30 | 1103610 | Door Sensor, Escutcheon (toast) |
|
- | |||||
| 30 | 1103611 | Door Sensor, Escutcheon (platinum) |
|
- | |||||
| 30 | 943568 | Door Sensor, Escutcheon (white) |
|
- | |||||
| 31 | 944973 | Clip, Wiring |
|
- | |||||
| 32 | 982904 | Drain Fitting, Liner |
|
- | |||||
| 33 | 841646 | Extension, Drain Fitting |
|
- | |||||
| 34 | 841648 | Clip, Drain Extension |
|
- | |||||
| 35 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 36 | 836372 | Insert, Air Baffle |
|
- | |||||
| 37 | 1101165 | Cover, Unit Compartment |
|
- | |||||
| 38 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 39 | 851648 | Receptacle, Head |
|
- | |||||
| 40 | 482553 | Harness, Wiring (6`` Leads) (includes Illus. 13) |
|
- | |||||
| 41 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 42 | 989068 | Clip, Grille |
|
- |
