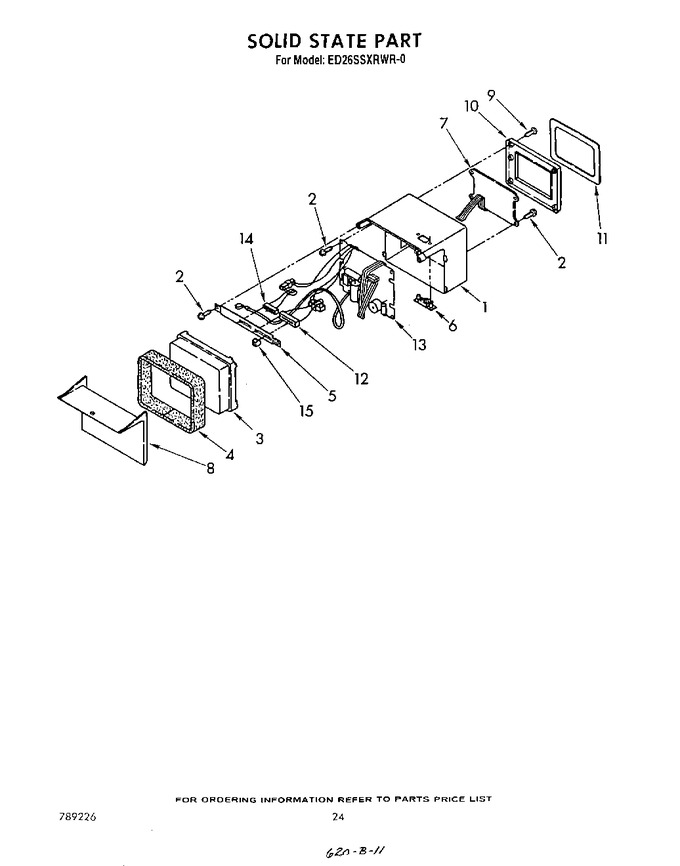

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	943526		Housing		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	943529		Insulation, Control Box		Appelez-nous	-
4	939993		Gasket, Control Box Insulation		Appelez-nous	-
5	943533		Bracket, Switch		Appelez-nous	-
6	946477		Switch		Appelez-nous	-
7	943539		Filter		Appelez-nous	-
8	1103607		Cover, Housing		Appelez-nous	-
9	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 489065)			Immediately	$ 14.76
10	943543		Escutcheon		Appelez-nous	-
11	1109146		Insert, Escutcheon (golden Harvest)		Appelez-nous	-
11	1103608		Insert, Escutcheon (toast)		Appelez-nous	-
11	946352		Insert, Escutcheon (almond)		Appelez-nous	-
11	1109145		Insert, Escutcheon (white)		Appelez-nous	-
11	1103609		Insert, Escutcheon (platinum)		Appelez-nous	-
12	1100453		Freezer, Slide Switch		Appelez-nous	-
13	943527		Control Board Assembly		Appelez-nous	-
14	1100452		Refrigerator, Slide Switch		Appelez-nous	-
15	1100451		Knob (2)		Appelez-nous	-
