SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Airflow


05 - Dispenser Front

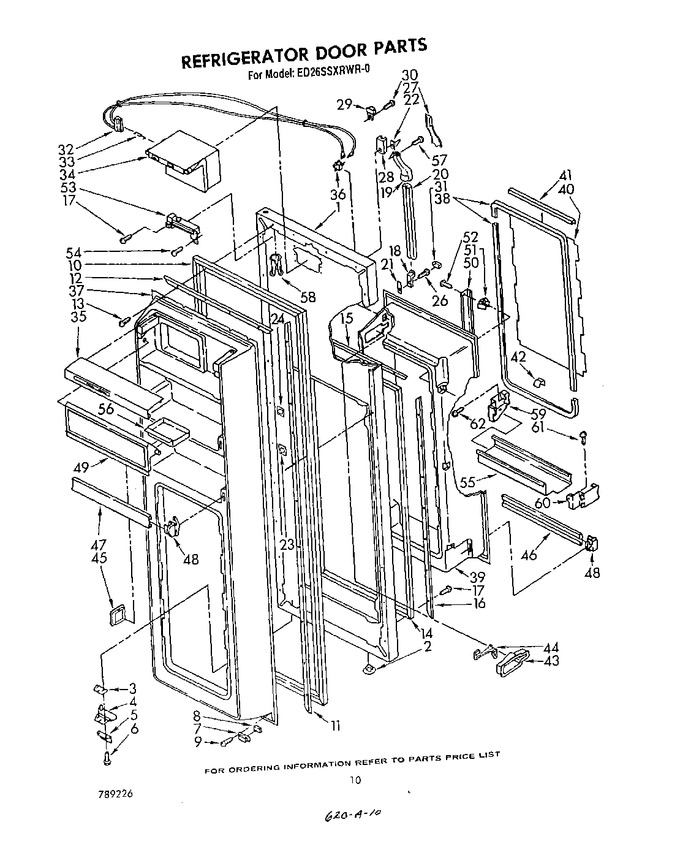

06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Freezer Interior


10 - Refrigerator Interior , Lit/optional


11 - Ice Maker


12 - Airflow And Control


13 - Serva-door


14 - Solid State


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103603		Exterior Door Panel (toast)		Appelez-nous	-
1	1103604		Exterior Door Panel (platinum)		Appelez-nous	-
1	943510		Exterior Door Panel (white)		Appelez-nous	-
1	943512		Exterior Door Panel (coffee)		Appelez-nous	-
1	943513		Exterior Door Panel (golden Harvest)		Appelez-nous	-
1	943515		Exterior Door Panel (almond)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	986169		Shim, Bottom Hinge		Appelez-nous	-
4	987914		Hinge, Bottom		Appelez-nous	-
5	988417		Bracket, Door Stop		Appelez-nous	-
6	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 7.95
7	939205		Magnet, Cover		Appelez-nous	-
8	939206		Magnet		Appelez-nous	-
9	488895		Screw		Appelez-nous	-
10	939341		Door, Gasket Magnetic		Appelez-nous	-
11	982887		Retainer, Gasket Side		Appelez-nous	-
12	836121		Retainer, Gasket Top & Bottom		Appelez-nous	-
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
13	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
14	935453		Gasket, Seal		Appelez-nous	-
15	986164		Reinforcement Strip, Top & Bottom (2)		Appelez-nous	-
16	986163		Reinforcement Strip, Side		Appelez-nous	-
17	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
18	935105		End, Cap Handle				$ 32.80
19	935103		Center, End Cap		Appelez-nous	-
20	1109094		Center, Handle (for Platinum Model Only)		Appelez-nous	-
20	1109092		Center, Handle		Appelez-nous	-
21	935076		Shim, Handle		Appelez-nous	-
22	935075		Shim, Handle Center		Appelez-nous	-
23	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
24	941242		Screw Anchor		Appelez-nous	-
26	WP488729		Screw, 89 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
27	1108794		Insert Handle (golden Harvest)		Appelez-nous	-
27	1108795		Insert Handle (almond)		Appelez-nous	-
27	1108796		Insert Handle (toast)		Appelez-nous	-
27	1108793		Insert Handle (white)		Appelez-nous	-
27	1108797		Insert Handle (platinum)		Appelez-nous	-
28	941954		Retainer Insert		Appelez-nous	-
29	941259		End Cap		Appelez-nous	-
30	489075		Screw, 10-32 X 5/8		Appelez-nous	-
31	987873		End Cap Cover		Appelez-nous	-
32	943520		Connector Edge		Appelez-nous	-
33	939958		Key, Lock Plug		Appelez-nous	-
35	943546		Escutcheon, Switch & Sensor		Appelez-nous	-
36	943518		Switch		Appelez-nous	-
37	1103605		Interior Door Panel		Appelez-nous	-
38	986453		Trim Periphery		Appelez-nous	-
39	1101480		Interior Door Pan, Storage		Appelez-nous	-
40	986455		Panel, Decorative		Appelez-nous	-
41	936954		Trim, Decorative		Appelez-nous	-
42	986454		Cap Trim Joint		Appelez-nous	-
43	1101453		Housing, Rocker Arm		Appelez-nous	-
44	1101454		Rocker Arm		Appelez-nous	-
45	1101455		Escutcheon, Panel Opening		Appelez-nous	-
46	1109088		Trim, Door Shelf		Appelez-nous	-
47	1108786		Trim, Door Shelf		Appelez-nous	-
48	839904		Retainer, Door Trim				$ 5.65
49	1109144		Compartment Door Utility		Appelez-nous	-
50	983804		Shelf Ladder, Door		Appelez-nous	-
51	537095		Expansion Clip		Appelez-nous	-
52	WP488729		Screw, 89 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
53	840847		Door, Closer		Appelez-nous	-
54	488624		Screw, 8 X 3/8		Appelez-nous	-
55	1109090		Door Shelf, Cantilever		Appelez-nous	-
56	520747		Tray, Butter		Appelez-nous	-
57	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
58	946354		Tubular Clip		Appelez-nous	-
59	986451		End Cap, Shelf Cantilever (r.s)		Appelez-nous	-
60	986452		End Cap, Shelf Cantilever (l.s)		Appelez-nous	-
61	488929		Screw, 4-20 X 3/16 (4)		Appelez-nous	-
62	WP487353		Screw, 6-20 X 3/8 (2)   (Replaces: 488776)				$ 7.57

    View Diagram in Separate Window       Print Part List
