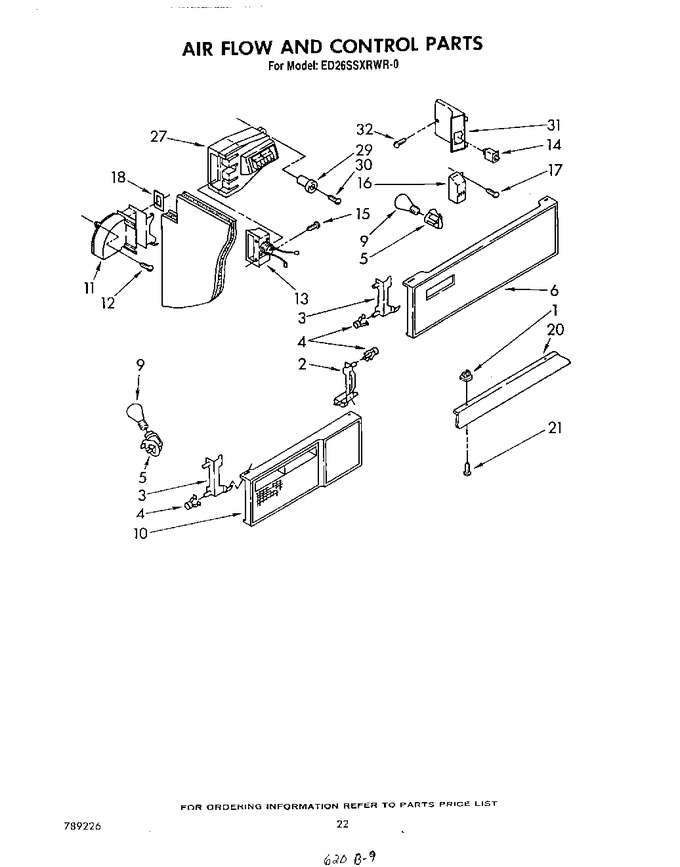

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	842355		Support, Light Lens (r.s.)		Appelez-nous	-
3	842356		Support, Light Lens (l.s.)		Appelez-nous	-
4	843945		Clip, Tubular		Appelez-nous	-
5	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 110.16
6	943556		Light, Lens		Appelez-nous	-
9	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
10	943557		Light Lens, Freezer		Appelez-nous	-
11	942898		Air Duct		Appelez-nous	-
12	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.54
13	943580		Damper & Heater Assembly		Appelez-nous	-
14	938049		Switch, Toggle		Appelez-nous	-
15	W11693756		Screw   (Replaces: 487239)			Immediately	$ 14.06
16	943553		Sensor Assembly		Appelez-nous	-
17	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
18	943548		Gasket, Air Damper		Appelez-nous	-
20	SM999		Baffle, Liner Top   (Replaces: 983369)			Immediately	$ 30.26
21	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
27	943577		Air Diffuser			Immediately	$ 57.56
29	836667		Spacer		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4		Appelez-nous	-
31	943550		Escutcheon, Power Miser		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
