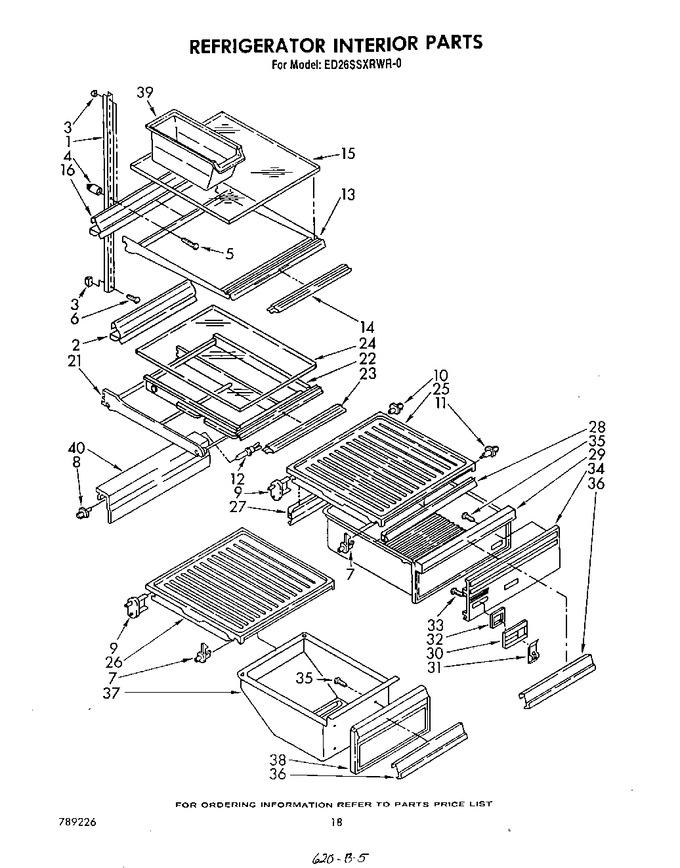

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936653		Shelf Ladder		Appelez-nous	-
2	1109086		Reflector, Shelf Rollout		Appelez-nous	-
3	520965		Screw, Support Ladder				$ 29.86
4	512923		Screw, Grommet		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4		Appelez-nous	-
6	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	488980		Screw (repair)		Appelez-nous	-
7	984779		Shelf, Stud		Appelez-nous	-
8	937513		Stud, Shelf		Appelez-nous	-
9	937521		Stud, Shelf		Appelez-nous	-
10	936591		Stud				$ 6.18
11	208500		Shelf, Stud		Appelez-nous	-
12	521878		Shelf Stud		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf Trim, Cantilever		Appelez-nous	-
15	1108782		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Cantilever		Appelez-nous	-
21	1109083		Frame, Cantilever Shelf		Appelez-nous	-
22	1109084		Rollout Shelf, Cantilever		Appelez-nous	-
23	849021		Trim, Shelf Front		Appelez-nous	-
24	1109085		Glass, Rollout Shelf		Appelez-nous	-
25	1108778		Pan Slide & Cover		Appelez-nous	-
26	1101202		Pan Slide & Cover		Appelez-nous	-
27	982588		Crisper Gasket Rear		Appelez-nous	-
28	982587		Crisper Gasket Front		Appelez-nous	-
29	943112		Pan Crisper		Appelez-nous	-
30	942234		Housing, Humidity Control		Appelez-nous	-
31	942235		Slide, Humidity Control		Appelez-nous	-
32	942236		Seal, Humidity Control		Appelez-nous	-
33	489041		Screw, 6-19 X 7/16		Appelez-nous	-
34	1108780		Front Cover, Crisper		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.79
36	984750		Overlay, Front Cover		Appelez-nous	-
37	840037		Pan (meat)		Appelez-nous	-
38	1108777		Front Cover, Meat		Appelez-nous	-
39	WP982704		Container, Utility   (Replaces: 1106048)				$ 31.00
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
40	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
40	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
40	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
40	833938		Kit, Terminal Connector				$ 8.07
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	988364		Light Lens, Lower		Appelez-nous	-
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
40	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
40	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
40	799908		Silicone (spray)		Appelez-nous	-
40	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
40	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT789226		Parts List		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT1109125		Guide, Use & Care		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT1101156		Service & Wiring Sheet		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
