Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 940466 Panel, Servadoor (white) Appelez-nous -
1 940468 Panel, Servadoor (golden Harvest) Appelez-nous -
1 940470 Panel, Servadoor (almond) Appelez-nous -
1 1101445 Panel, Servadoor (toast) Appelez-nous -
1 1101446 Panel, Servadoor (platinum) Appelez-nous -
2 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

3 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 7.79

4 986157 Sleeve, Hinge Pivot Appelez-nous -
5 991331 Bracket, Door Stop Appelez-nous -
6 488956 Screw, 8 X 7/16 Appelez-nous -
6 00488977 Screw (repair)   (Replaces: 488977) Special Order $ 1,526.98

7 986434 Insulation, Servadoor Appelez-nous -
8 991745 Gasket, Serva-door Appelez-nous -
9 935105 End, Cap Handle Special Order $ 32.80

10 935103 Centercap, Handle Appelez-nous -
11 1109104 Center, Handle (for Platinum Model Only) Appelez-nous -
11 1109097 Center, Handle Appelez-nous -
12 935076 Shim, Handle End Appelez-nous -
13 935075 Shim, Handle Center Appelez-nous -
14 489008 Screw, 8-32 X 7/16 Appelez-nous -
15 488844 Screw, 8-32 X 1/2 Appelez-nous -
16 1109101 Insert, Handle (toast) Appelez-nous -
16 1109100 Insert, Handle (almond) Appelez-nous -
16 1109099 Insert, Handle (golden Harvest) Appelez-nous -
16 1109098 Insert, Handle (white) Appelez-nous -
16 1109102 Insert, Handle (platinum) Appelez-nous -
17 935875 Retainer, Insert Appelez-nous -
18 935106 End Cap, Retainer Appelez-nous -
19 936711 Cover, End Cap Appelez-nous -
20 1101457 Interior Panel (servadoor) Appelez-nous -
21 987911 Hinge, Top Appelez-nous -
22 986168 Shim, Hinge Top Appelez-nous -
23 488927 Screw, 8-32 X 5/8 Appelez-nous -
24 941766 Ground, Clip Appelez-nous -
25 488306 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

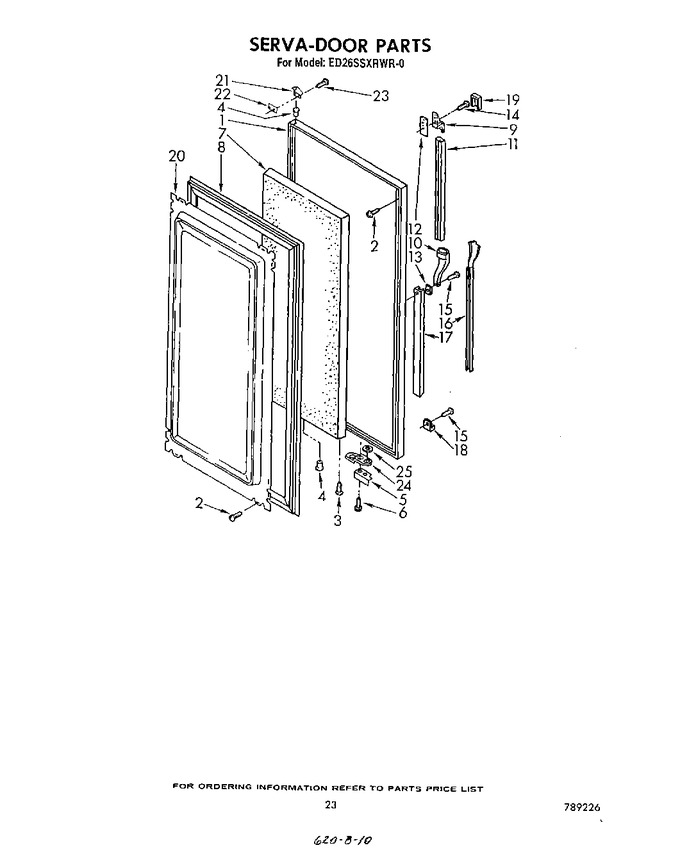

Diagram for ED26SSXRWR0
