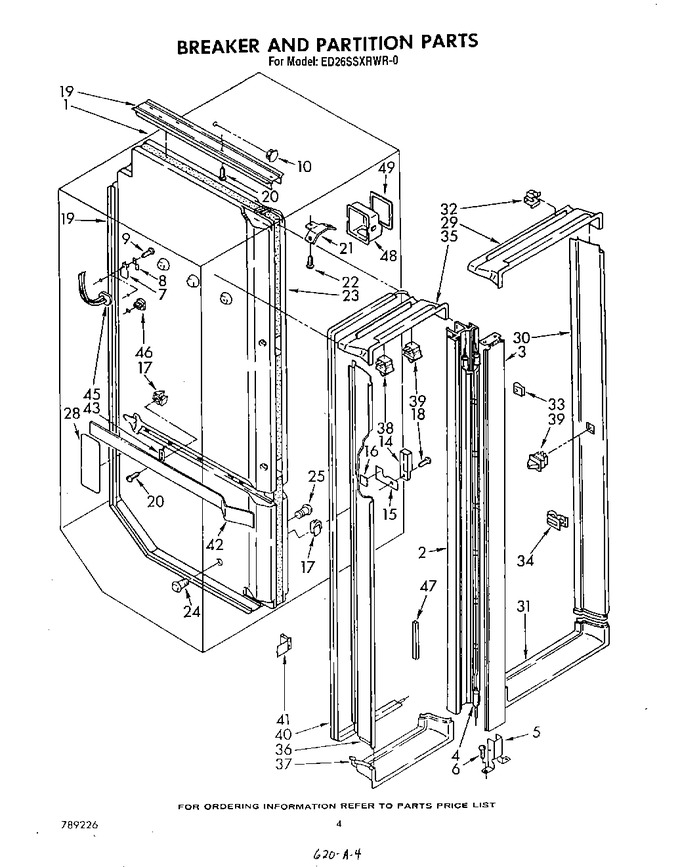

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	935613		Break Mullion, Frame		Appelez-nous	-
3	1101404		Mullion, Front (platinum)		Appelez-nous	-
3	935614		Mullion, Front (white)		Appelez-nous	-
3	935616		Mullion, Front (golden Harvest)		Appelez-nous	-
3	935618		Mullion, Front (almond)		Appelez-nous	-
3	1101403		Mullion, Front (toast)		Appelez-nous	-
4	943519		Mullion, Heater		Appelez-nous	-
5	935619		Mullion, Bracket		Appelez-nous	-
6	WP488729		Screw, 8 X 1/2   (Replaces: 487900)			Immediately	$ 7.79
6	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.87
7	538532		Screw Grommet		Appelez-nous	-
8	538533		Support Clip		Appelez-nous	-
9	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 7.85
10	519890		Hole, Plug		Appelez-nous	-
14	984101		Escutcheon Meat		Appelez-nous	-
15	984102		Slide Meat Pan, Cold Control				$ 5.02
16	992358		Pad, Foam		Appelez-nous	-
17	537095		Expansion Clip		Appelez-nous	-
18	486214		Screw 8-15 X 1/2		Appelez-nous	-
19	1103303		Track, Divider (back & Bottom)		Appelez-nous	-
19	946359		Track, Divider (top)		Appelez-nous	-
20	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
21	935666		Retainer Bracket, Divider		Appelez-nous	-
22	WP681414		Screw, 10 X 1/2   (Replaces: 488908)			Immediately	$ 7.85
23	1103304		Divider, Mullion		Appelez-nous	-
24	843888		Retainer, Hole Insert		Appelez-nous	-
25	843887		Insert, Hole		Appelez-nous	-
28	987054		Shield, Divider		Appelez-nous	-
29	992042		Breaker Trim, Top Refrigerator		Appelez-nous	-
30	935115		Breaker Trim, (r.s.) Refrigerator		Appelez-nous	-
31	992044		Breaker Trim, Bottom Refrigerator		Appelez-nous	-
32	836090		Breaker Retainer		Appelez-nous	-
33	838849		Breaker Trim, Clip		Appelez-nous	-
34	937668		Breaker Trim, Bottom Clip		Appelez-nous	-
35	992047		Breaker Trim, Top Freezer		Appelez-nous	-
36	935643		Breaker Trim, Freezer (l.s.)		Appelez-nous	-
37	939829		Breaker Trim, Freezer (bottom)		Appelez-nous	-
38	WP4387911		Switch, Rocker Arm   (Replaces: 851387)			Immediately	$ 39.66
39	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 37.23
40	934475		Heater, Stile		Appelez-nous	-
41	937205		Stile Clip, Retainer		Appelez-nous	-
42	1103312		Cover, Heat Exchanger		Appelez-nous	-
43	983605		Heat Exchanger, Clip		Appelez-nous	-
45	481658		Harness, Cabinet Wiring (ice Maker)		Appelez-nous	-
46	842339		Grommet		Appelez-nous	-
47	941706		Support, Wire		Appelez-nous	-
48	992284		Container Power Miser		Appelez-nous	-
49	934082		Gasket Container		Appelez-nous	-
