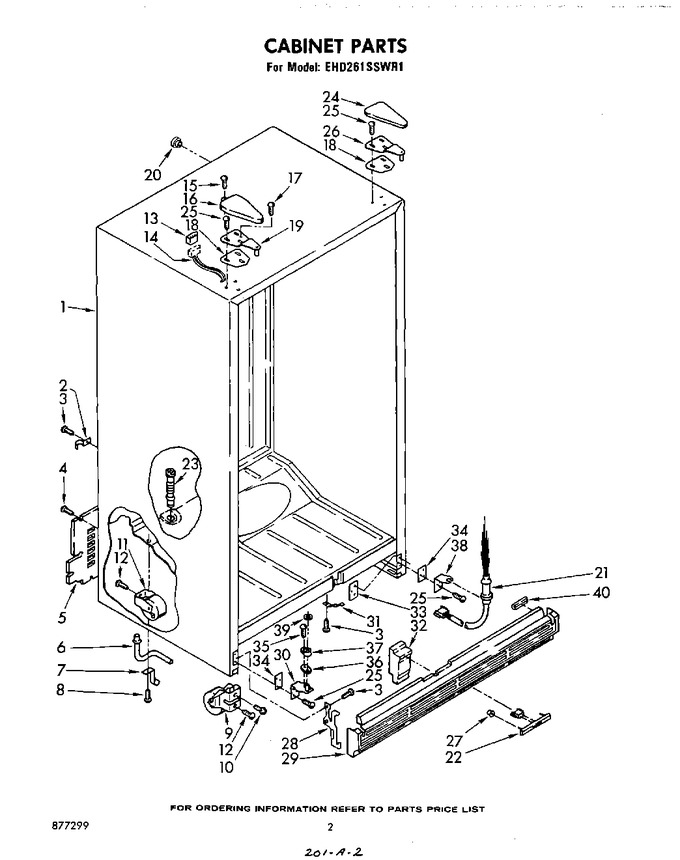

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 836472 | Clamp, Tube (2) |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.67 | |||||
| 5 | 851174 | Cover, Unit Compartment |
|
- | |||||
| 6 | 841646 | Extension Fitting |
|
- | |||||
| 7 | 841648 | Clip, Drain |
|
- | |||||
| 8 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 9 | 981127 | Roller, Front (2) |
|
- | |||||
| 10 | 488681 | Screw, Adjusting |
|
- | |||||
| 11 | WPW10250570 | Roller Assembly, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 12 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 13 | 851648 | Receptacle, Head |
|
- | |||||
| 14 | 482553 | Harness, Wiring (6`` Leads) (includes Illus. 13) |
|
- | |||||
| 15 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 16 | 989886 | Cover, Hinge (new Avocado) |
|
- | |||||
| 16 | 987191 | Cover, Hinge (white) |
|
- | |||||
| 16 | 989884 | Cover, Hinge (coffee) |
|
- | |||||
| 16 | 989885 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 16 | 989887 | Cover, Hinge (almond) |
|
- | |||||
| 17 | WP488234 | Screw, 8-32 X 5/32 (ground Wire) (Replaces: 488889) |
|
$ 6.74 | |||||
| 18 | 992854 | Shim, Top Hinges |
|
- | |||||
| 19 | 983608 | Hinge, Top (l.h.) |
|
- | |||||
| 20 | 839989 | Grommet (3) |
|
- | |||||
| 21 | 939247 | Wiring Assembly (refrigerator Door) |
|
- | |||||
| 22 | 939955 | Door, Sensor (new Avocado) |
|
- | |||||
| 22 | 941705 | Door, Sensor (pin, Terminal (repair)) |
|
- | |||||
| 22 | 939257 | Door, Sensor (white) |
|
- | |||||
| 22 | 939953 | Door, Sensor (coffee) |
|
- | |||||
| 22 | 939954 | Door, Sensor (golden Harvest) |
|
- | |||||
| 22 | 939956 | Door, Sensor (almond) |
|
- | |||||
| 23 | 982904 | Drain Fitting, Liner |
|
- | |||||
| 24 | 989896 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 24 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 24 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 24 | 989895 | Cover, Hinge (coffee) |
|
- | |||||
| 24 | 989897 | Cover, Hinge (new Avocado) |
|
- | |||||
| 25 | WP999367 | Screw, 10-32 X 3/4 (Replaces: 488948) |
|
$ 7.86 | |||||
| 25 | 488949 | Screw, 12-14 X 3/4 (repair) |
|
- | |||||
| 26 | 935041 | Hinge, Top (r.h.) |
|
- | |||||
| 27 | 936571 | Stud, Anchor (2) |
|
- | |||||
| 28 | 844614 | Support, Grille (2) |
|
- | |||||
| 29 | 939231 | Grille (new Avocado) |
|
- | |||||
| 29 | 939232 | Grille (almond) |
|
- | |||||
| 29 | 939229 | Grille (coffee) |
|
- | |||||
| 29 | 939227 | Grille (white) |
|
- | |||||
| 29 | 939230 | Grille (golden Harvest) |
|
- | |||||
| 30 | 986764 | Hinge Bottom (l.h) |
|
- | |||||
| 31 | 939988 | Clip, Wiring (3) |
|
- | |||||
| 32 | 836372 | Insert, Baffle |
|
- | |||||
| 33 | 836162 | Plate, Tap |
|
- | |||||
| 34 | 836196 | Shim, Bottom Hinge (.030) |
|
- | |||||
| 35 | 488913 | Screw (repair) |
|
- | |||||
| 35 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.34 | |||||
| 36 | 987179 | Shim, Door Closer (.030) (l.h. Hinge) |
|
- | |||||
| 37 | WPW10329686 | Closer, Door (l.h. Hinge) (Replaces: 986759) |
|
Immediately | $ 5.43 | ||||
| 38 | 939152 | Hinge, Bottom (r.h.) |
|
- | |||||
| 39 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 40 | 546131 | Bumper, Grille (2) |
|
- |
