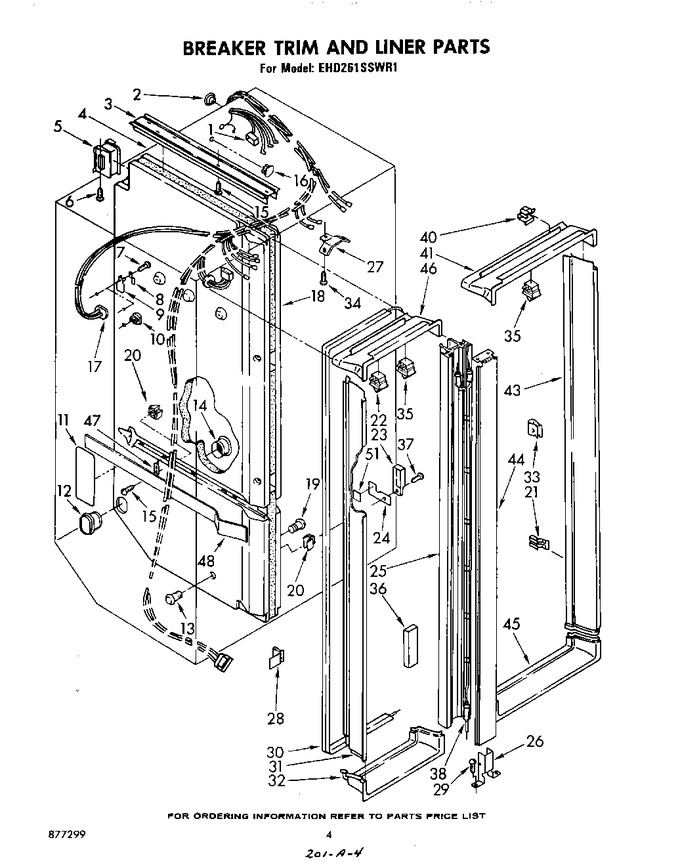

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 481782 | Harness, Cabinet Wiring (defrost Timer) |
|
- | |||||
| 2 | 851020 | Grommet, Wiring |
|
- | |||||
| 3 | 988460 | Track, Divider (bottom) |
|
- | |||||
| 3 | 988459 | Track, Divider (back) |
|
- | |||||
| 3 | 988458 | Track, Divider (top) |
|
- | |||||
| 4 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 5 | 848433 | Control Connector & Gasket Assembly |
|
- | |||||
| 6 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.54 | |||||
| 7 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 8 | 538533 | Clip, Support (2) |
|
- | |||||
| 9 | 538532 | Grommet, Ice Maker (2) |
|
- | |||||
| 10 | 842339 | Grommet |
|
- | |||||
| 11 | 987054 | Shield, Divider |
|
- | |||||
| 12 | 982921 | Retainer, Hole |
|
- | |||||
| 13 | 843888 | Retainer, Hole |
|
- | |||||
| 14 | 982920 | Insert, Hole |
|
- | |||||
| 15 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 16 | 519890 | Plug, Hole (3) |
|
- | |||||
| 17 | 481658 | Harness, Cabinet Wiring (ice Maker) |
|
- | |||||
| 18 | 941204 | Divider Mullion Assembly |
|
- | |||||
| 19 | 843887 | Insert, Hole |
|
- | |||||
| 20 | 537095 | Clip, Extension (2) |
|
- | |||||
| 21 | 937668 | Clip, Breaker Trim (5) |
|
- | |||||
| 22 | WP4387911 | Switch, Dispenser Motor (Replaces: 851387) |
|
Immediately | $ 39.66 | ||||
| 23 | 985468 | Escutcheon, Cold Control |
|
- | |||||
| 24 | 984102 | Slide, Cold Control |
|
$ 5.02 | |||||
| 25 | 935613 | Braker, Frame |
|
- | |||||
| 26 | 935619 | Bracket, Mullion |
|
- | |||||
| 27 | 935666 | Bracket, Divider (2) |
|
- | |||||
| 28 | 937205 | Clip, Heater (6) |
|
- | |||||
| 29 | WP308685 | Screw (repair) (Replaces: 488258) |
|
Immediately | $ 7.87 | ||||
| 29 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 487900) |
|
Immediately | $ 7.79 | ||||
| 30 | 934475 | Heater, Stile |
|
- | |||||
| 31 | 935643 | Breaker, Trim L.s. |
|
- | |||||
| 32 | 939829 | Breaker Trim, Bottom |
|
- | |||||
| 33 | 838849 | Clip, Breaker Trim (5) |
|
- | |||||
| 34 | WP681414 | Screw, 10 X 1/2 (4) (Replaces: 488908) |
|
Immediately | $ 7.85 | ||||
| 35 | W11384469 | Switch, Light (2) (Replaces: 549702) |
|
Immediately | $ 37.23 | ||||
| 36 | 941706 | Support, Wire |
|
- | |||||
| 37 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 38 | 935620 | Heater, Mullion |
|
- | |||||
| 40 | 836090 | Retainer, Breaker (9) |
|
- | |||||
| 41 | 992042 | Breaker Trim, Top |
|
- | |||||
| 43 | 935115 | Breaker Trim, R.s. |
|
- | |||||
| 44 | 935618 | Mullion, Front (almond) |
|
- | |||||
| 44 | 935614 | Mullion, Front (white) |
|
- | |||||
| 44 | 935615 | Mullion, Front (coffee) |
|
- | |||||
| 44 | 935617 | Mullion, Front (new Avocado) |
|
- | |||||
| 44 | 935616 | Mullion, Front (golden Harvest) |
|
- | |||||
| 45 | 992044 | Breaker Trim, Bottom |
|
- | |||||
| 46 | 992047 | Breaker Trim, Top |
|
- | |||||
| 47 | 983605 | Clip, Heat Exchanger (2) |
|
- | |||||
| 48 | 935634 | Cover, Heat Exchanger |
|
- | |||||
| 51 | 992358 | Pad, Foam |
|
- |
