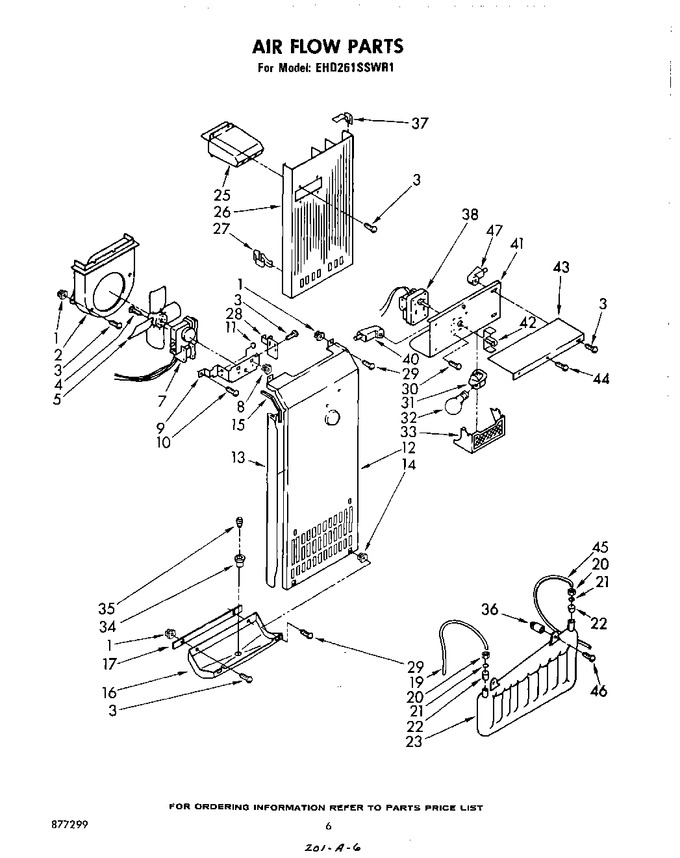

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 983650 | Scroll Fan |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 5 | 839859 | Blade, Fan |
|
- | |||||
| 7 | SM999 | Motor, Fan (alternate) (Replaces: 938223) |
|
Immediately | $ 30.26 | ||||
| 7 | SM999 | Motor, Fan (alternate) (Replaces: 938283) |
|
Immediately | $ 30.26 | ||||
| 8 | 538449 | Grommet (2) |
|
- | |||||
| 9 | 938224 | Bracket (single) |
|
- | |||||
| 10 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 11 | 548268 | Grommet (3) |
|
- | |||||
| 12 | 939729 | Cover, Evaporator |
|
- | |||||
| 13 | 983649 | Gasket (2) |
|
- | |||||
| 14 | 848445 | Grommet (2) |
|
- | |||||
| 15 | 987178 | Gasket, Evaporator Cover (top) (2) |
|
- | |||||
| 16 | 934121 | Pan, Drain |
|
- | |||||
| 17 | 934130 | Gasket, Drain Pan |
|
- | |||||
| 19 | W10823511 | Tube, Water (Replaces: 988220) |
|
Immediately | $ 32.41 | ||||
| 20 | 488795 | Nut, Compression (2) |
|
- | |||||
| 21 | 00753257 | Ring, ``o`` (2) (Replaces: 488819) |
|
Immediately | $ 295.49 | ||||
| 22 | 4387491 | Insert, Tube (2) (Replaces: 841707) |
|
$ 8.23 | |||||
| 23 | WP2256126 | Reservoir, Water (Replaces: 839912) |
|
$ 177.29 | |||||
| 25 | 983652 | Deflector, Air |
|
- | |||||
| 26 | 983651 | Duct, Air |
|
- | |||||
| 27 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.94 | |||||
| 28 | 548263 | Bracket (double) |
|
- | |||||
| 29 | WP488729 | Screw, 8-15 X 1/2 (8) (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 30 | 303776 | Screw, 8-32 X 5/16 (4) (Replaces: 488906) |
|
- | |||||
| 31 | 4387478 | Socket, Light (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 32 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 33 | 983359 | Lens-light |
|
- | |||||
| 34 | 836088 | Fitting, Drain |
|
- | |||||
| 35 | 842259 | Cap, Drain |
|
- | |||||
| 36 | 843436 | Grommet (3) (reservoir Mounting) |
|
- | |||||
| 37 | 987954 | Baffle, Air |
|
- | |||||
| 38 | 851152 | Motor, Dispenser |
|
- | |||||
| 38 | 989604 | Motor, Dispenser (alternate) |
|
- | |||||
| 40 | 983660 | Stud Support (2) |
|
- | |||||
| 41 | 989716 | Bracket, Dispenser Motor |
|
- | |||||
| 42 | WPW10169511 | Coupling, Motor (Replaces: 983663) |
|
$ 24.51 | |||||
| 43 | 989715 | Cover, Ice Dispenser |
|
- | |||||
| 44 | 00487294 | Screw, 8-32 X 3/8 (Replaces: 487294) |
|
$ 175.09 | |||||
| 45 | W10823511 | Tube, Water (Replaces: 944681) |
|
Immediately | $ 32.41 | ||||
| 46 | 488775 | Screw, 8 X 1-1/2 (3) |
|
- | |||||
| 47 | 992720 | Stud Support (2) |
|
- |
